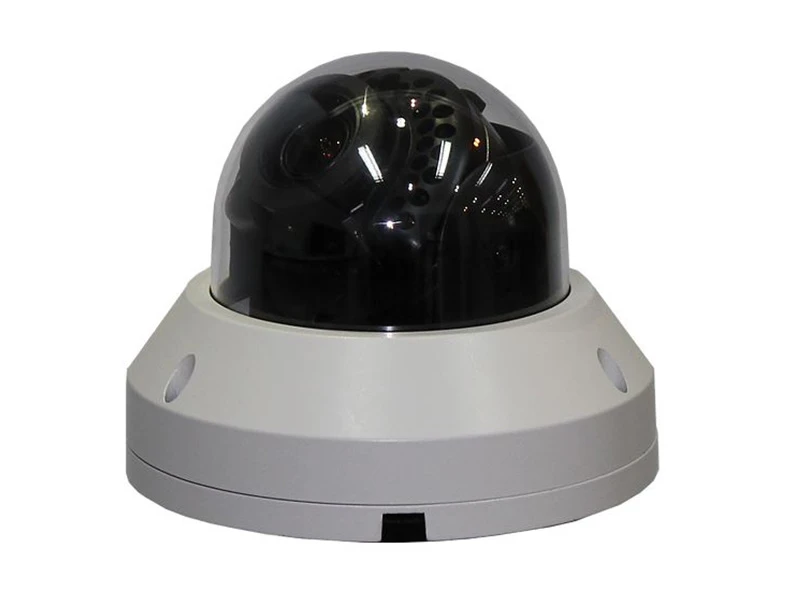

Probe PHID H300ZIR IP IR Dome Kamera
Özellikler
Using Ultra-Low Light senor
- With 2M 1/1.9”CMOS image sensor, you can check High image quality and clear color images in dim light environment. It also has the ability to powerful low noise effect and outstanding noise reduction.
Triple codec, Simultaneous multi steaming
- Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. Therefore, it is possible to combine seamless remote video monitoring using H.264/H.265 with simultaneous transmission to Network Video Recorder.
Powerful zoom capability
- x3 optical zoom, x12 digital zoom, excellent automatic focusing, and 3.6 ~ 10 mm focus range. Especially, since the aperture is F1.5~F2.5, it is possible to acquire better quality image than any other camera.
Weather Proof Design
- With IP66 protection, the camera ensures normal operation regardless of rain, snow or storm.
Teknik Özellikler
| CAMERA | |
| Image Device | 1/1.9“ Progressive Scan CMOS |
| Total Pixels | 1,956(H)X1,266(V) |
| Effective Pixels | Approx. 2.35 Mega pixels |
| Aspect Ratio | HD: 16:9 |
| Zoom Ratio | Optical x3, Digital x12 |
| Focal Length | f = 3.6 ~ 10.0 mm |
| Aperture | F1.5 ~ F2.5 |
| FOV(Horizontal) | 102.5°(W) ~ 59.8 °(T) |
| Color MIN. Illumination | COLOR : 0.005 Lux@F1.5 |
| B/W MIN. Illumination | B/W : 0.0005 Lux@F1.5, 0 Lux (IR) |
| Day & Night | Auto(CDS/CAM) / Day / Night(ICR) |
| Focus | Auto/Semi Auto/Manual |
| DNR(2D/3D) | OFF/Level Adjustment(1~5) |
| Shutter Speed(60/30 mode) | 1 sec ~ 1/10,000sec |
| Shutter Speed(50/25 mode) | 1 sec ~ 1/10,000sec |
| AGC | Auto/Manual |
| White Balance | Auto/Indoor/Outdoor/Manual |
| WDR/BLC | OFF/BLC/WDR(Digital) |
| Other Function | Defog(Digital), HLC, Dynamic slow shutter |
| GENERAL | |
| Digital In /Out | 1 Alarm Sensor In / 1 Out |
| Audio In / Out | 1 Audio In / 1 Audio Out |
| Video Out | BNC: VBS 1.0 Vp-p |
| Power | DC12V |
| Approvals | IK10, KC, IP66 |
| Housing | Weather proof/Vandal Proof Structure |
| Material | Body: Aluminum Die-casting |
| Dimension | 150 x 118 (mm), Dome Ø100 |
| Weight | About : 750g |
| Operating Temp. | -40°C ~ 50°C |
| Infrared LED | |
| IR Distance | More than 30m |
| Wave | 850m |
| NETWORK | |
| Ethernet | 10Base-T/100Base-Tx |
| Video Compression | H.265/H.264 /MJPEG |
| Main Video Stream | 1080p/720p |
| Second Video Stream | D1/CIF/QCIF |
| Third Video Stream | 1080p/720p/D1/CIF/QCIF |
| Stream Type | Video/Complex(Video/Audio) Stream |
| Frame Rate | Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF |
| Bitrate | 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP |
| Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz |
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB |
| IVA | Motion Detection, Occlusion Detection |
| Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | |
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client |
| Alarm | Pre-Post Alarm |
| Max No. of Clients | 10 users(Depending on user bandwidth) |
| Web Brower | IE 6.0 above |
| IPv4 Protocols | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, |
| DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* | |
| DDNS Protocols | Pubblic DDNS services Suport: www.dyndns.com |
| ONVIF Protocols | PROFILE S |
| Security Protocols | User Authentication(ID/PW), IP Address/Mac Address filtering* |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Irled : Var
