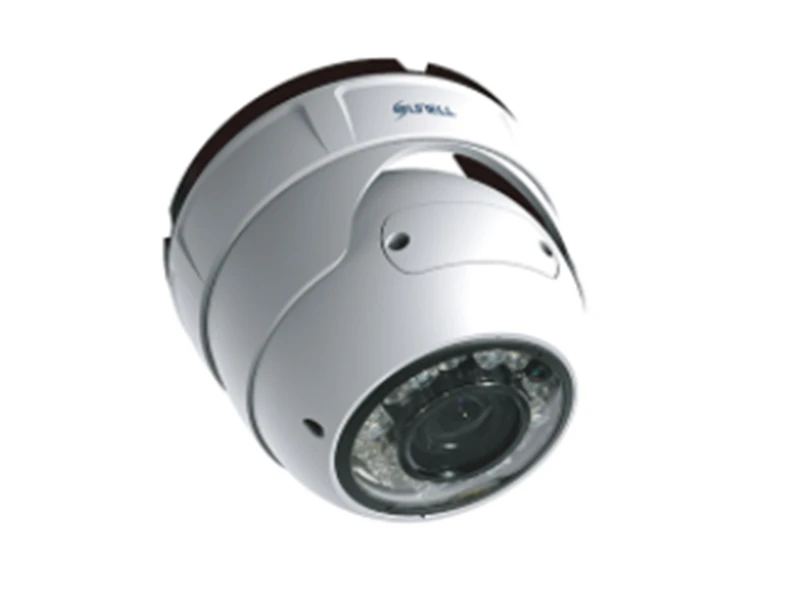

Sunell SN IPR57/41ALDN IP IR Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Effective Pixels | 2592(H)×1520(V) |
| Scanning System | Progressive |
| Electronic Shutter | 1/5-1/20000s |
| Min. illumination | Color:0.05Lux@(F1.2,AGC ON) |
| B/W:0Lux@(IR LED ON) | |
| S/N Ratio | 55dB |
| IR Range | Up to 30m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 15pcs |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚ |
| Lens | |
| Lens Type | Manual |
| Iris | Auto Iris |
| Focal Length | 3~12mm |
| F Number | F1.4 |
| Angle of View | 87°~ 35° |
| Focus Control | Manual |
| Close Focus Distance | 0.3m |
| Video | |
| Compression | H.265,H.264,MJPEG |
| Max. Resolution | 4MP(2592×1520) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps |
| Stream3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500kbps~12000kbps |
| Stream2: 100kbps~6000kbps | |
| Stream3: 100kbps~3000kbps | |
| Day/Night | ICR |
| Image Enhancement | HLC / Defog / WDR (120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | Support |
| Mirror | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Audio | |
| Compression | G.711 ,RAW_PCM |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
| Network | |
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP |
| Interoperability | ONVIF |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | IMS 3.0 |
| Smart Phone | IOS, Android |
| Intelligence | |
| IVS | Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter ,Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking , Signal Bad |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Audio In,1ch Audio Out |
| Alarm | N/A |
| RS485 | N/A |
| BNC Output | Support |
| Reset Button | Support |
| Edge Storage | Micro SD/SDHC/SDXC slot, Max 128GB |
| Electrical | |
| Power Supply | DC12V/POE |
| Power Consumption | 3W(IR LED OFF), 5W（IR LED ON） |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F ) |
| Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | φ120×105.5mm |
| Net Weight | 700g |
Sunell SN IPR57/41ALDN IP IR Eyeball Kamera Pdf Dosyası452.32 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
