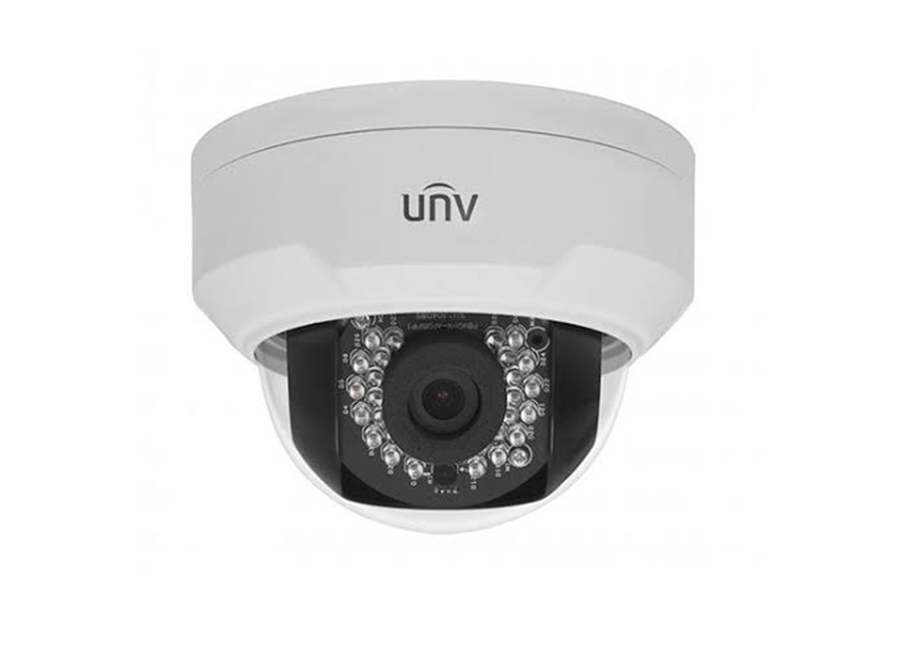

Uniview IPC322ER3 DUVPF28 B IP HD Dome Kamera
Özellikler
- Starlight illumination
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
Teknik Özellikler
Camera | |
Sensor | 1/2.9", 2 megapixel, progressive scan CMOS |
Lens | 2.8 mm@F1.6 |
Angle of View (H) | 105.2° |
Shutter | Auto/Manual, 1/6~1/100000 s |
Min. Illumination | Colour: 0.002 Lux (F1.6, AGC ON) |
0 Lux with IR | |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >52dB |
WDR | Optical WDR(up to 120dB) |
Noise Reduction | 2D/3D |
Video | |
Max. Resolution | 1920 × 1080 |
Video Compression | H.265, H.264,MJPEG |
Frame Rate | 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720×576): Max. 30 fps |
Video Streaming | Triple |
9:16 Corridor Mode | Supported |
ROI | Supported |
Evaluative Metering | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
Smart | |
Behavior Detection | Intrusion, crossing line, motion detection |
Exception Detection | Audio detection |
Intelligent Identification | Face detection, Defocus, Scene Change |
Statistical Analysis | People counting |
Audio | |
Audio Compression | G.711 |
Two-way audio | Supported |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network | |
Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
Compatible Integration | ONVIF,API |
Interface | |
Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
Output: impedance 600 Ω; amplitude 2 V [p-p] | |
Alarm I/O | 1.Oca |
Network | 10M/100M Base-TX Ethernet |
General | |
Power | 12 V DC, or PoE (IEEE802.3 af) |
Power consumption: Max 5.5W | |
Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
Uniview IPC322ER3 DUVPF28 B IP HD Dome Kamera PDF Dosyası415.34 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
