Açıklama

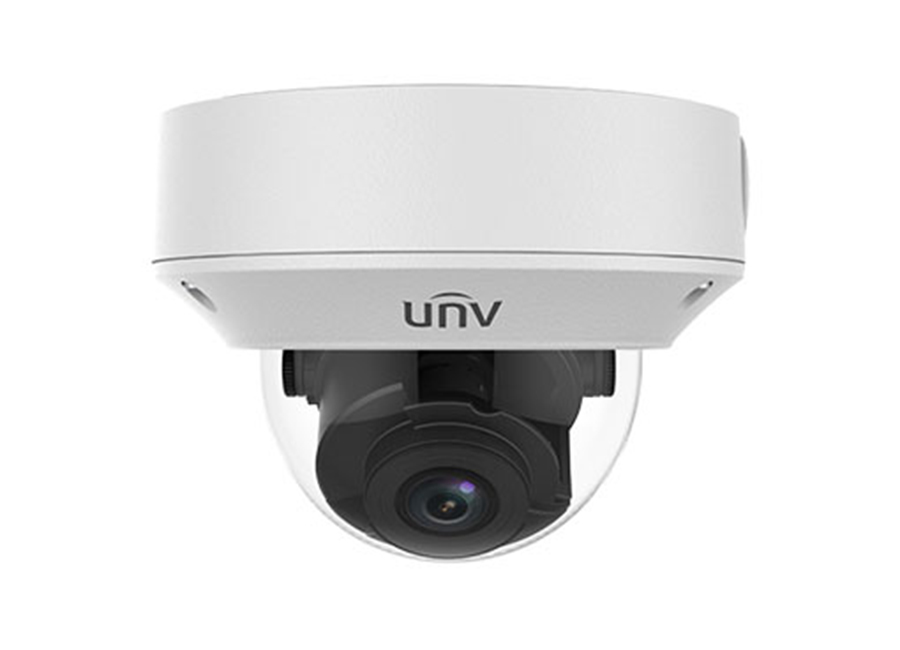

Uniview IPC3234LR3 VSP D IR IP Dome Kamera
Özellikler
- Day/night functionality
- SmartIR , up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Teknik Özellikler
Model | IPC3234LR3-VSP-D | IPC3234LR3-VSPZ28-D | ||||||
Camera | ||||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8~12 mm,manual zoom lens | 2.8~12 mm, motorized zoom lens | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
12mm | 270 | 108 | 23.2 | 27.1 | ||||
Angle of View (H) | 91.0°~27° | |||||||
Angle of View (V) | 54.4°~13.7° | |||||||
Angle of View (O) | 118.3°~33.2° | |||||||
Adjustmentangle | Pan: 0°~360° | Tilt: 0°~80° | Rotate:0°~360° | |||||
Shutter | Auto/Manual, 1~1/100000 s | |||||||
Minimum Illumination | Colour: 0.01Lux (F1.6 AGC ON) | |||||||
0 Lux with IR | ||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
IR Range | Up to 30m (98 ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | DWDR | |||||||
Video | ||||||||
Video Compression | Ultra 265,H.265, H.264,MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream:4MP (2048*1520): Max. 20fps; | |||||||
Sub Stream:720P (1280*720): Max.20 fps; | ||||||||
Third Stream: D1 (704×576): Max.20fps | ||||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 8 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Network | ||||||||
Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL | |||||||
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
Edge Storage | MicroSD, up to 256GB | |||||||
General | ||||||||
Power | DC12V±25%, PoE (IEEE802.3 af) | |||||||
Power consumption: Max 6W | ||||||||
Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) | |||||||
Weight | 0.92kg (2.0lb) | |||||||
Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | |||||||
Ingress Protection | IP67 | |||||||
Vandal Resistant | IK10 | |||||||
Reset Button | Supported |
Uniview IPC3234LR3 VSP D IR IP Dome Kamera Pdf Dosyası243.59 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Irled : Var
