Açıklama

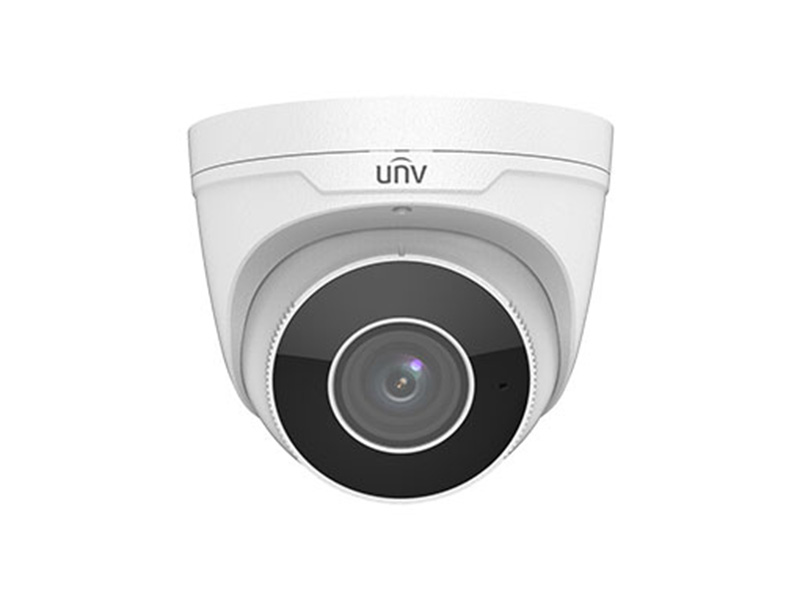

Uniview IPC3632ER3 DUPZ C IP IR Eyeball Kamera

Özellikler

Teknik Özellikler

1/2.8",progressive scan,CMOS
1920×1080 resolution, 30fps
2.7~13.5mm Optical Zoom & Auto Focus
Up to 120 dB Optical WDR(Wide Dynamic Range)
Smart IR, up to 30m IR distance
Ultra 265,H.265,2D/3D DNR, ROI,Corridor Mode,ONVIF
DC12V,PoE.Wide voltage range of 25%
IP67

Camera
Sensor	1/2.8", progressive scan, 2.0 megapixel, CMOS
Lens	2.7~13.5 mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)	Identify(m)
	2.7mm	41.9		16.8	8.4	4.2
	13.5mm	309.5		8 3.8	41.9	20.6
Angle of view(H)	121.36°~33.51°
Angle of View (V)	74.1°~13.2°
Angle of View (O)	157.8°~41.2°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°		Rotate: 0°~360°
Shutter	Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination	Colour: 0.0005 Lux (F1.2, AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP(1920 x 1080): Max. 30 fps, ;
	Sub Stream:2MP(1920 x 1080): Max. 30 fps;
	Third Stream:D1(720 x 576):Max. 30 fps;
9:16 Corridor Format	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection、Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering,TamperingAlarm,AccessPolicy,ARP Protection,RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP,DHCP, PPPoERTP,RTSP,RTCP,DNS,DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G),API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 8.16W
Dimensions (Ø x H)	Φ129 x 110 mm (Ø5.08” x 4.3”)
Weight	0.67 kg (1.48lb)
Working Environment	-40°C ~ +60°C (-40°F ~ 140°F), Humidity：10%~90% RH(non-condensing)
Ingress Protection	IP67
Reset Button	Supported
