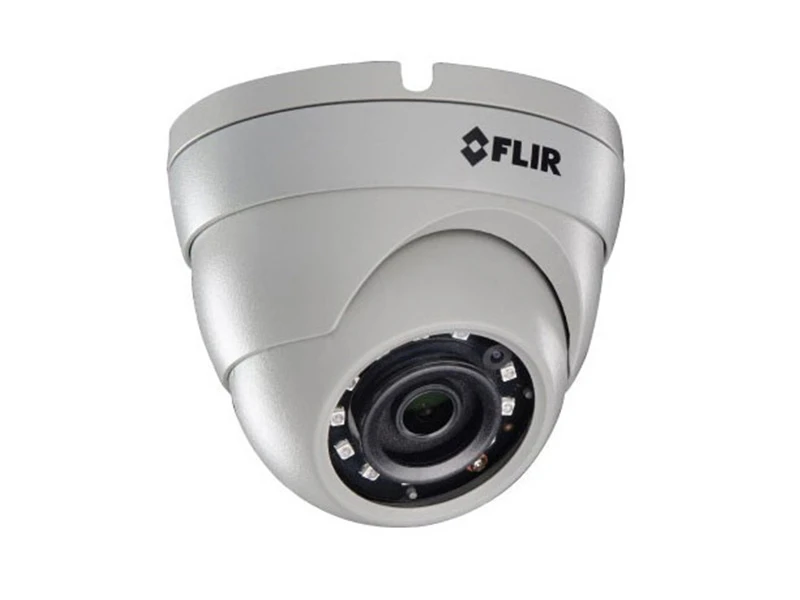

FLIR PE133F P IP HD Dome Kamera
Özellikler
- True Wide Dynamic Range (up to 100dB @ 3MP) provides more accurate detail in high contrast scenes
- Intelligent compression coupled with Region of Interest (ROI) optimizes video performance based on available bandwidth
- IP66 weatherproof rating with cold climate capability (-22°F / -30°C)
Teknik Özellikler
| Camera | PE133F/P |
| Image Sensor | 1/3" 4MP |
| Effective Pixels | H: 2688 × V: 1520 |
| Image Type | CMOS |
| Image Readout | Progressive Scan |
| Day/Night | Auto (ICR) / Color / B/W |
| Day/Night Delay Adjustment | Yes |
| Mechanical IR Filter | Yes |
| Min. Illumination | 0.38 lux @ F1.8 (Color), 0.28 lux @ F1.8 (B/W) |
| S/N Ratio | ≥42dB (AGC OFF) |
| Horizontal Field of View | 90° |
| IR Illumination Range | 82ft / 25m |
| IR Wavelength | 850nm |
| IR ON/OFF Control | Yes |
| Video Output | IP |
| Electronic Shutter Range | 1/3 (1/4) ~ 1/100,000 seconds |
| Optical | |
| Lens Type | Fixed Lens |
| Lens Mount | Board Type |
| Iris Type | AES |
| Focal Length | 2.8mm |
| F-Number | F2.0 |
| Focus | Fixed |
| Video | |
| Video Compression | H.264 / MJPEG |
| Video Streams | H.264 / MJPEG Triple Stream |
| Resolution Selection (Mainstream) | 4MP(2688 × 1520) / 3.7MP(2560x1440)/ 3MP(2304×1296) / 1080P(1920×1080) / 1.3MP(1280x960) / 720P(1280×720) |
| Aspect Ratio | 16 : 9 (excl. 1.3MP @ 4:3) |
| Frame rates (MAX) | 4MP @ up to 20fps / 3MP/1080p/720p @ 25/30fps |
| Bit Rate Control | CBR / VBR (with cap) |
| Bit Rate Selection (Mainstream) | H.264 – 1,792 Kbps ~ 10,240Kbps / Custom |
| Quality Setting Range (Default) | 1-6 (6) |
| Region of Interest | Yes (4) |
| Wide Dynamic Range | True WDR, User selectable |
| Dynamic Range | Up to 100dB |
| Backlight Compensation | BLC / HLC |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D-DNR |
| Smart IR | Yes, User Adjustable |
| Image Stabilization | No |
| Digital Zoom | Up to 10x |
| Tamper Detection | Yes |
| Adaptive Lens Correction (ALC) | No |
| Video Mirroring / Rotation | Horizontal Mirror / 90˚ / 180˚ / 270˚ / Hallway Mode |
| Video Overlay | Time / Date / Channel / Title / Custom |
| Window Blanking (Privacy) | Up to 4 Areas |
| Menu Languages | English |
| Network | |
| Protocols | IPv4/IPv6, HTTP, TCP/IP, ARP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS |
| ONVIF Conformance | Profile S |
| RTSP Video | Standard RFC2326, Support QuickTime/VLC Player. User Security Authentication (Enabled/Disabled) |
| Unicast Users | Up to 20 |
| Multicast Users | Up to 20 |
| Mechanical | |
| Construction | Aluminum Alloy |
| Product Dimensions (W × D × H) / (Dia x H) | 3.8” D × 2.8” H 95mm D × 51mm H |
| Product Weight | 0.30kg / 0.65lbs |
| Electrical | |
| Network Port | RJ45, 10/100 Base-T |
| Power Input | 12V DC |
| Power over Ethernet (PoE) Type | PoE (802.3af) |
| Power Consumption (max.) | 2.8W MAX |
| Current Consumption (max.) | 230mA |
| Edge Storage | N/A |
| Built-in Heater | N/A |
| Audio I/O | N/A |
| Audio Encoding | N/A |
| Alarm I/O | N/A |
| Environmental | |
| Storage Temperature | -40° ~ 140°F / -40° ~ 60°C |
| Storage Humidity | > 95% RH |
| Operating Temperature | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity | > 95% RH |
| Cold Start Temperature | -22°F / -30°C |
| Ingress Protection | IP66 |
| Certifications | |
| Certifications | CE / FCC |
Teknik Kısa
Çözünürlük : 4MP
