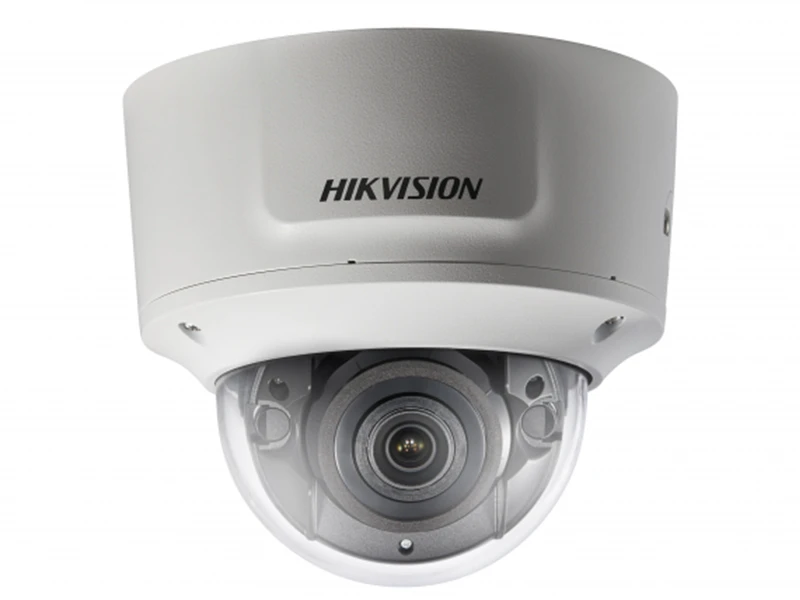

Haikon DS 2CD2725FHWD IZS IP HD Dome Kamera

Özellikler

2MP Motorize Varifokal Lensli WDR IR Dome Kamera (60fps)
1/2.8” PS CMOS, 2.8~12mm Motorize VF Lens
Üçlü Akış, Slowshutter
30mt IR, 3D DNR, 120 dB WDR, BLC, ROI,
Analizler (Hat ihlali, İzinsiz giriş, bırakılan nesne, kaybolan nesne, yüz algılama), 128GB
mSD Desteği, ANR, NAS Desteği,
Ses ve Alarm Girişi/Çıkışı, BNC çıkış, SVC, Reset butonu
Çevresel gürültü filtreleme, IP67, IK10, 12VDC veya POE

Teknik Özellikler

Camera
Matrix	1 / 2.8 '' Progressive Scan CMOS
Sensitivity	0.005k @ (F1.2, AGC on), 0k with IR
Electronic Shutter Speed	1 / 3с ~ 1 / 100,000с
Lens	2.8 - 12mm@F1.4, motorized zoom lens
Lens mount	Φ14
Angle of the lens	105 ° to 35 °
Focusing	Auto
Adjusting the aperture	Auto
Day / Night Mode	Mechanical IR filter with auto-switching
Adjusting the installation angle	Rotation: 0 ° - 355 °; inclination: 0 ° - 75 °; rotation: 0 ° - 360 °
Compression
Video Compression	H.265 / H.264 / MJPEG / H.265 + / H.264 +
Profile H.264	Main Profile / High Profile
Profile H.265	Main Profile
Bitrate video	32 kb / s - 16 Mb / s
Audio compression	G.711 / G.722.1 / G.726 / MP2L2
Bitrate audio	32-128kb / s
Maximum resolution	1920 × 1080
Main stream	50 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Additional flow	25 fps (640 × 360, 352 × 288)
Third Stream	25 fps (1280 × 720, 640 × 360, 352 × 288)
SVC	Supported by
Image Settings	Saturation, brightness, contrast, sharpness, corridor mode, mirroring and privacy mask are configured via client software or a web browser
Image enhancement	BLC / 120dB WDR / 3D DNR / 1 region ROI for each stream
Day / Night Switching	Auto / Scheduled / Alarm
Smart video analytics
Motion Detection	Detection of line crossing, invasion of the area, abandoned / missing items
Anti-tampering	there is
Net
Network storage	NAS (Support for NFS, SMB / CIFS), ANR
Protocols	TCP / IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Security	User authentication, watermarks, IP address filtering
Compatibility	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Alarm triggering	Smart functions, network disruption, IP address conflict, authorization errors, storage errors
Alarm actions	Recording on a microSD / SDHC / SDXC card, customer notification, sending email, uploading to FTP, activating the recording channel
Interfaces
Network Interface	1 RJ45 10M / 100M Ethernet
Audio Input	1
Audio output	1
Filtration of environmental noise	Supported by
Sampling frequency	16kHz
Alarm Interfaces	1 input / 1 output
CVBS video output	there is
Local storage	Slot for microSD / SDHC / SDXC up to 128GB
Reset button	there is
Basic
Food	DC12V ± 25% / PoE (802.3af, class 3)
Power Consumption	11W Max.
Working conditions	-40 ° C ... + 60 ° C, humidity 95% or less (without condensation)
Protection	IP67, IK10
Range of the EXIR-illumination	Up to 30m
Housing material	Metal
Dimensions	Ø153.4 × 133.1mm
Net weight)	1.287 kg
