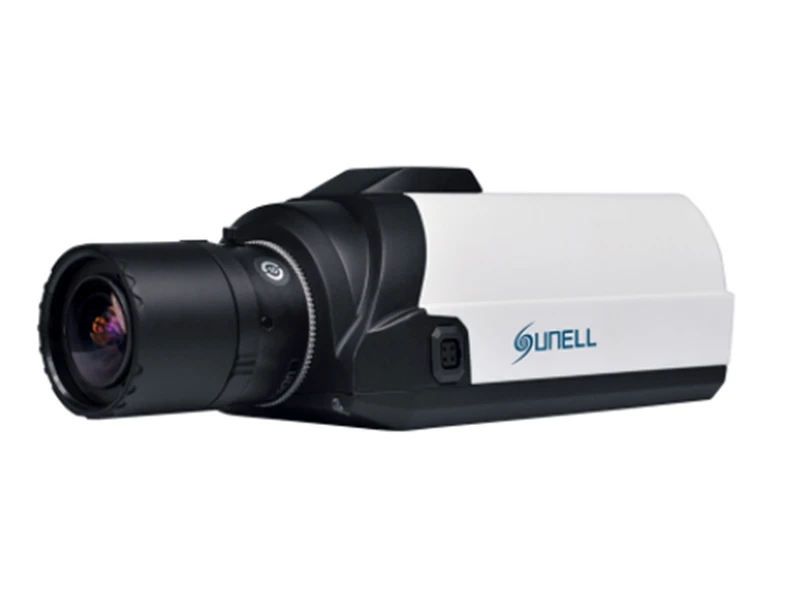

Sunell SN IPC56/20EDN IP Box Kamera
Özellikler
Teknik Özellikler
CAMERA | |
Image Sensor | 1/2.9” Progressive Scan CMOS |
Min. illumination | Color 0.01Lux(AGC ON); B&W 0.001Lux(AGC ON) |
Day & Night | ICR |
Shutter Speed | 1/5-1/20000s |
Auto Iris | Yes |
Wide Dynamic Range | dWDR |
Digital Noise Reduction | 2D/3D |
Lens | N/A |
FOV | N/A |
IR LED | N/A |
IR Range | N/A |
IMAGE | |
Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
Bit Rate (CBR/VBR) | Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
Audio Compression | G.711 ,RAW_PCM |
Max.Resolution | 1920*1080/30fps |
Stream | Stream1 1920x1080/1280x720 |
Stream2 D1 to QVGA | |
Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
HLC | Yes |
9/16 Corridor Mode | Yes |
DIS | Auto |
ROI | Yes |
Defog | Yes |
NETWORK | |
Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast. |
Alarm Trigger | Default Base: Motion Detection,Line Crossing,Tamper, Area Instrusion, Network disconnect,Disk alarm,I/O alarm |
Optional Advance: Motion Detection,Line Crossing,Tamper, Area Instrusion, Camera Move,Dwell,Multiple Dwell,Retrograde Detection,Object Left,Object Remove,Abnormal Speed,Illegal Parking,Network disconnect,Disk alarm,I/O alarm | |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
Security | User security authentication, Reset, Hardware Watch Dog |
Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
System Compatibility | Onvif |
INTERFACE | |
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Microphone | Yes(Built-in) |
Audio I/O | 1ch Audio In,1ch Audio Out |
Alarm I/O | 1ch Alarm In,1ch Alarm Out |
RS485 | Yes |
BNC Output | Yes |
Reset Button | Yes |
Edge Storage | Micro SD/SDHC/SDXC slot ,Max 64GB |
GENERAL | |
Power Supply | AC24V/DC12V/POE |
Power Consumption | 3W(MAX) |
OperatingTemperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F ) |
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
Operating Humidity | 0% - 90% RH |
Ingress Protection | N/A |
Approvals | CE / FCC |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
