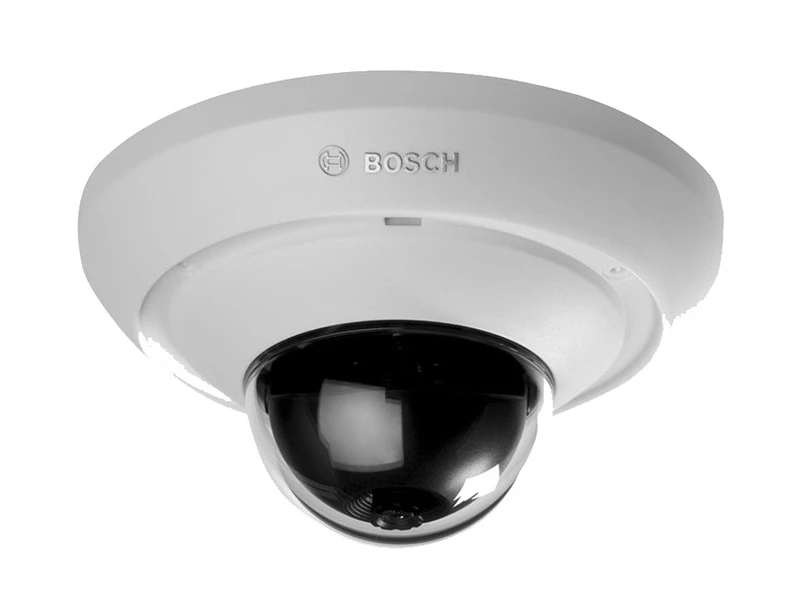

Bosch NUC 50022 F2 Micro IP HD Dome Kamera
Teknik Özellikler
| Video | |
| Sensor Type | 1/2.7" CMOS |
| Pixels | 1920 x 1080 |
| Sensitivity | 0.1 lux |
| Dynamic Range | 76 dB |
| Electronic Controls | Auto, Color, Monochrome (Day / Night) |
| Shutter Speed | Automatic Electronic Shutter (AES) |
| Fixed (1/30 (1/25) to 1/15,000) | |
| Video Resolution | 1080p, 720p, 480p, 432p, 240p, 288p, 144p |
| Aspect Ratio | 16:09 |
| Video Compression | H.264 MP (Main Profile) |
| M-JPEG | |
| Frame Rate | 30 ips |
| Video Setting | Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, |
| Sharpness level, Contrast enhancement, Backlight Compensation, Privacy Mask, Motion detection, Tamper alarm, Upright mode, Pixel counter | |
| Lens | |
| Lens Type | 2.5 mm fixed, F2.8 |
| Lens Mount | Board mounted |
| Viewing Angle (H/V) | 135 x 75° (H x V) |
| Input/Output | |
| Analog Video Output | 2.5 mm jack for installation only (NTSC) |
| Storage | |
| Ram | 10 sec pre-alarm recording (internal) |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (sold separately) |
| Recording | Continuous recording, ring recording |
| Alarm / events / schedule recording | |
| Software | |
| Unit Configuration | Via Web browser or Bosch Video Client PC surveillance software |
| Software Updates | Remotely programmable |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP / RTCP, IGMP V2 / V3, ICMP, |
| ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II), 802.1x, | |
| DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), | |
| LLDP, SOAP, Dropbox, CHAP, Digest Authentication | |
| Encryption | TLS 1.0, SSL, DES, 3DES, AES |
| Ethernet | 10 / 100 Base-T, auto-sensing, half / full duplex |
| Ethernet Connector | RJ45 |
| Bandwith | Optimized Bandwidth: |
| At 12 IPS: 1753 kb/s | |
| At 5 IPS: 1136 kb/s | |
| At 2 IPS: 489 kb/s | |
| PoE | IEEE 802.3af (802.3at Type 1) |
| Power Level: Class 1 | |
| Connectivity | ONVIF Profile S, Auto-MDIX |
| Environmental | |
| Operating Temperature | -22 to +122°F (-30 to +50°C) |
| Storage Temperature | -22 to +158°F (-30 to +70°C) |
| Humidity | 0 to 95% relative humidity (non condensing) |
Teknik Kısa
Çözünürlük : 2MP (1080P)
