Açıklama

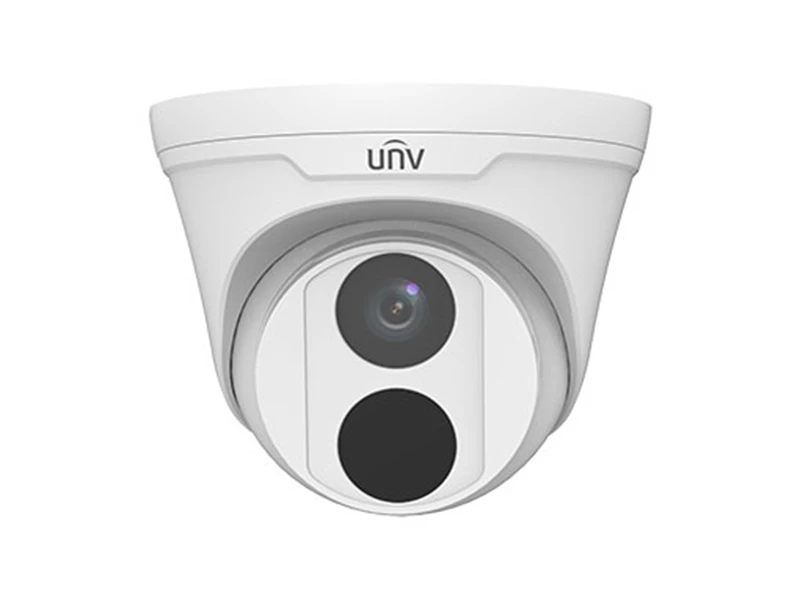

Uniview IPC3614LR3 PF28 D IP Dome Kamera

Name: Uniview IPC3614LR3 PF28 D IP Dome Kamera
Brand: Uniview

Optics

Compression

Network

Structure

Depolama : Var

Çözünürlük : 4MP

	IPC3614LR3-PF28-D			IPC3614LR3-PF40-D
Camera
Sensor	1/3", 4.0megapixel,progressivescan, CMOS
Lens	2.8mm@F2.0			4.0mm@2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)	Identify(m)
	2.8mm	42		16.8	8.4	4.2
	4.0mm	60		24	12	6
Angle of view(H)	104.4°			78.9°
Angle of View (V)	54.4°			39.6°
Angle of View (O)	135.7°			97.0°
Shutter	Auto/Manual,1~1/100000 s
Adjustment angle	Pan: °~360°		Tilt: °~90°		Rotate:0°~360°
Min. Illumination	Colour: 0.03 Lux(2.0, AGC ON)
	0 Lux with IR
IR Range	Up to 30m(98 ft) IR range
Day/Night	IR-cut filter withauto switch (ICR)
S/N	>52dB
WDR	DWDR
Noise Reduction	2D/3D
Video
Video Compression	Ultra 265,H.265,H.264,MJPEG
Frame Rate	Main Stream:4MP(2592*1520):Max. 20 fps;
	Sub Stream:720P(1280*720): Max. 30 fps;
	Third Stream:D1(720×576): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
Compatible Integration	ONVIF(Profile S),API
Interface
Network	10/100M Base-TXEthernet
General
Power	12 V DC±25%, PoE(IEEE802.3 af)
	Power consumption:Max 4W
Dimensions (Ø x H)	Φ118x 96 mm(Φ4.6” x 3.8”)
Weight	0.35kg (0.77lb)
Working Environment	-30°C ~ +60°C(-22°F ~ 140°F),Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
