Açıklama

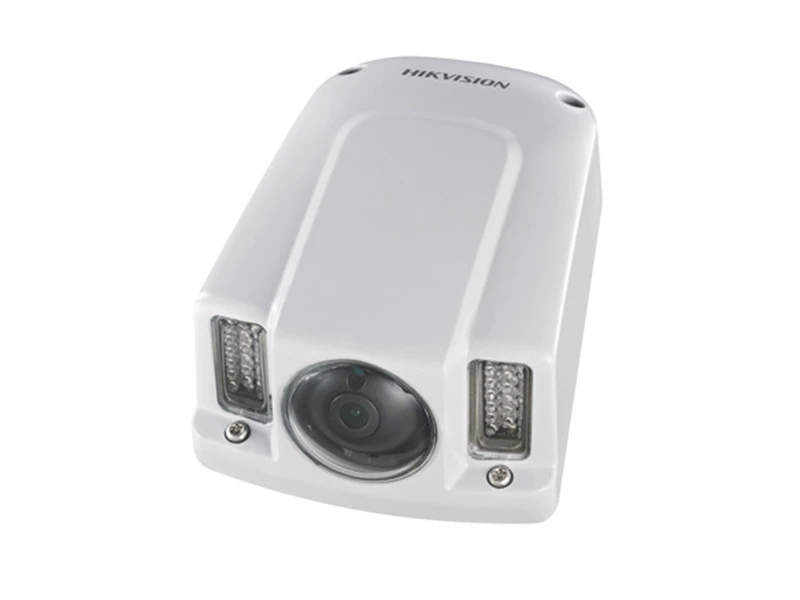

Hikvision DS 2CD6510 IO Mobil IP Kamera
Özellikler
- Up to 1280×960 @ 30 fps forreal-time output
- ROI and SVC are adoptedwith high compression ratio, flexible disposure and low bitrate
- Progressive scan CMOS with smoothand fluent capture for moving object
- Effective IR lamp with longlife-span; 20-30m IR distance
- IR cut filter with autoswitch
- 3D DNR and DWDR
- Two streams; mobile phoneviewing is supportable
- PoE power supply issupportable
- Rotate mode, BLC, DWDR are for different environment
- Ingress Protection: IP68
- Vandal-proof: IK10
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @(F1.2,AGC ON) , 0 Lux with IR |
| 0.028Lux @(F2.0,AGC ON) ,0 Lux with IR | |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, angle of view: 73.1°(6mm, 46°; 8mm, 35.5°; 12mm, 22° optional) |
| Lens Mount | M12 |
| Adjustment Range | (Universal) H: -15°~15°, V: 0°~30°, R: -90°~90° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 code profile | Baseline Profile / Main Profile / High Profile |
| Video bit rate | 32Kbps~8Mbps |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50Hz: 25fps (1280 × 960), 25fps (1280 × 720),60Hz: 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Settings | |
| BLC | Yes, zone configurable |
| 3D DNR | support |
| ROI | support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Motion detection, Tampering alarm |
| Protocols | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless,
heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio | Internal Microphone and Speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 V DC ± 10%, PoE (802.3at) |
| Power Consumption | DC12V: 7.5W MAX |
| PoE: 9W MAX | |
| Impact Protection | IK10 |
| IR Range | Approx 20 to 30 meters(65.6-98.4ft) |
| Dimensions | Φ155.17 × 110.9 × 60.8mm |
| Weight | 846g |
Hikvision DS 2CD6510 IO Mobil IP Kamera Pdf Dosyası691.17 KB
Hikvision DS 2CD6510 IO Mobil IP Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.07 MB
Teknik Kısa
Çözünürlük : 1.3MP
