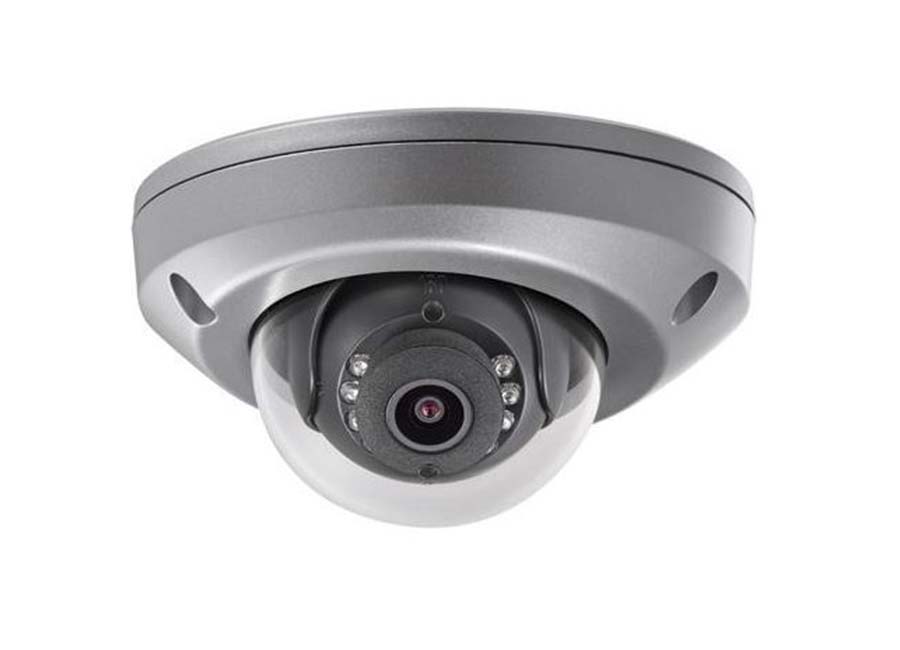

Hikvision DS 2CD6510DT I Mobil IP Kamera
Özellikler
- Up to 1280×960 @ 30 fps for real-time output
- ROI and SVC are adoptedwith high compression ratio, flexible disposure and low bitrate
- Progressive scan CMOS with smoothand fluent capture for moving object
- IR cut filter with autoswitch
- 3D DNR and DWDR
- Two streams; mobile phoneviewing is supportable
- PoE power supply issupportable
- Rotate mode, BLC, DWDR are for different environment
- Ingress Protection: IP54
- Vandal-proof: IK08
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" CMOS |
| Minimum Aydınlatma | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Objektif Hızı | 1/50s~1/100,000s |
| 2.8mm, horizontal view angle 80°(4mm/6mm optional) | |
| Lens Mount | M12 |
| Ayarlanan Aralık | H: -30°~30°, V: 0°~75°, R: 0°~360° |
Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 Türü | Base Line Profile/Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Ses Bit Hızı | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Çerçeve Hızı | 50Hz: 25fps (1280 × 960,1280 × 720) |
| 60Hz: 30fps (1280 × 960,1280 × 720) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | support |
| 3D DNR | support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Audio | 1-ch audio in, Mic in/Line in; |
| 1-ch audio out | |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| GÜç Tüketimi | 4W MAX |
| IR Range | 10 meters |
| Boyutlar | Φ110x63 |
| Ağırlık | 510g |
Hikvision DS 2CD6510DT I Mobil IP Kamera Pdf Dosyası703.25 KB
Hikvision DS 2CD6510DT I Mobil IP Kamera Kullanım Kılavuzu (ing) Pdf Dosyası1.3 MB
Teknik Kısa
Çözünürlük : 1.3MP
