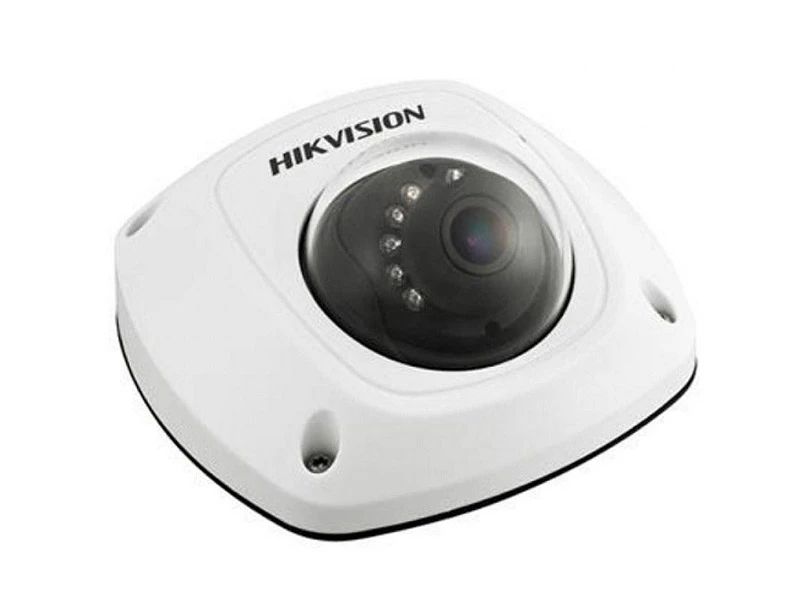

Hikvision DS 2XM6112FWD IM Mobil IP Kamera
Özellikler
- Up to 1.3 megapixel high resolution
- 1280 × 960 @30fps video
- Three video streams
- 4mm/6mm/8mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- Support on-board storage, up to 128 GB
- DC12V & PoE (802.3af)
- Up to 10 m IR range
- IP66 weather-proof protection(inside vehicle use type)
- IK08 vandal proof protection
- M12 aviation plug (optional)
- Multiple smart events supported
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | 4 mm, horizontal field of view 90°[6 mm (53.9°), 8 mm (37.9°), optional] |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.265/H.264/MJPEG |
| Video bit rate | 256Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Dual Stream | Yes |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50Hz: 25fps (1280 × 960, 1280×720) |
| 60Hz: 30fps (1280 × 960, 1280×720) | |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| 60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Image Enhancement | BLC/HLC/3D DNR/Defog/EIS |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping | support |
| 3D DNR | support |
| ROI | Support 4 fixed region for each stream, or face dynamic tracking |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format |
| Day/Night Switch | Day/Night/Auto/Scheduled |
| Network | |
| Network Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, |
| SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| Interface | |
| Communication Interface | -IM: M12 aviation plug |
| -I: 1 RJ45 10M/100M Ethernet port | |
| Audio | 1-ch audio in, Mic in/Line in; |
| 1-ch audio out | |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Audio | |
| Environment Noise Filtering | Support |
| Audio I/O | Support dual audio track, stereo (-S) |
| Audio Sampling Rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
| General | |
| IR Range | Up to 10 m |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5W |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| Dimensions | 99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″) |
| Weight | 420 g (0.92lbs) |
Hikvision DS 2XM6112FWD IM Mobil IP Kamera Pdf Dosyası810.53 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
