Açıklama

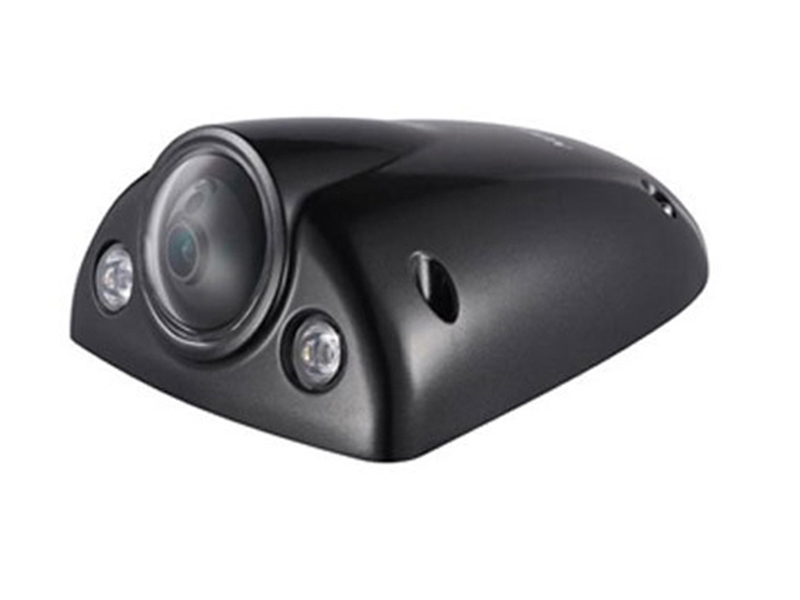

Hikvision DS 2XM6512WD IM Mobil IP Kamera
Özellikler
- Up to 1.3 megapixel high resolution
- 1280 × 960 @30fps video
- Three video streams
- 4mm/6mm/8mm/12mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- DC12V & PoE (802.3af)
- IR range 30-50m
- IP68 weather-proof protection
- IK10 vandal-resistant protection
- M12 aviation plug (optional)
- Multiple smart events supported
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s, support auto electronic shutter |
| Slow shutter | support |
| Lens | 6 mm, horizontal field of view 53.9°[4 mm (90°), 8 mm (37.9°), 12 mm (24.3°), optional] |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Dual Stream | Yes |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50Hz: 25fps (1280 × 960, 1280×720) |
| 60Hz: 30fps (1280 × 960, 1280×720) | |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| 60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
| Image Enhancement | BLC/HLC/3D DNR/Defog/EIS |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping | support |
| 3D DNR | support |
| ROI | Support 4 fixed region for each stream, or face dynamic tracking |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, |
| SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| Intelligent | |
| Face Capture | Human face appears in the image can be detected and trigger linkage method |
| Interface | |
| Communication Interface | -IM: M12 aviation plug |
| -I: 1 RJ45 10M/100M Ethernet port | |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection, defocus detection |
| General | |
| IR Range | 30-50m |
| Operation Condition | -40 °C to 70 °C (-40 °F to 158 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 8.5W |
| Impact Protection | IK10 |
| Weather Proof | IP68 |
| Dimensions | 163.7 × 122.6 × 65.1 mm (6.4″ × 4.8″ × 2.6″) |
| Weight | 960g (2.1lbs) |
Hikvision DS 2XM6512WD IM Mobil IP Kamera Pdf Dosyası648.05 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
