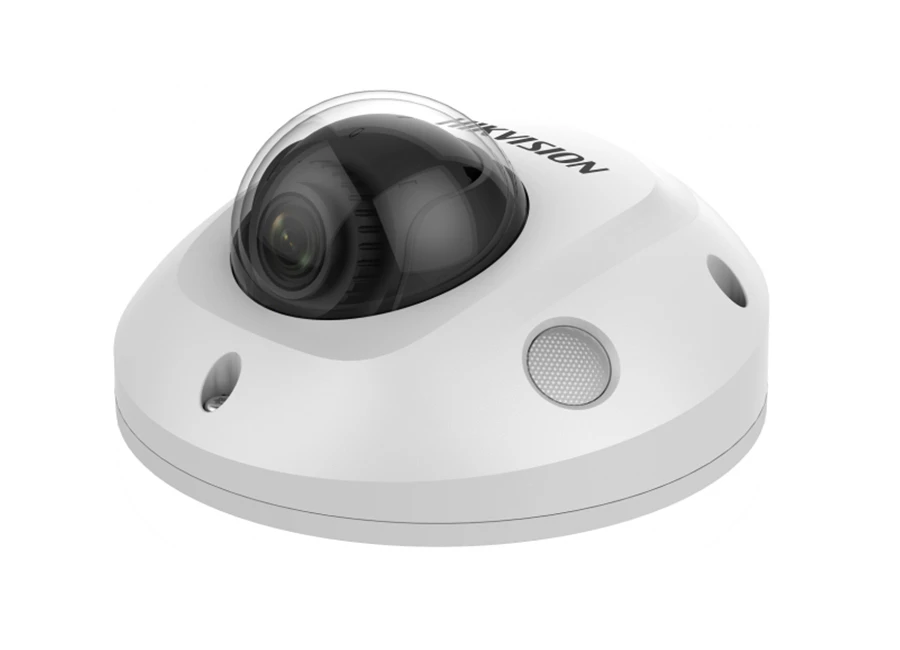

Hikvision DS 2XM6736FWD IM Mobil IP Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter time | 1/3 s to 1/100,000 s |
Slow shutter | Yes |
Lens | 2.0/2.8/4/6/8 mm fixed lens |
Lens Mount | M12 |
Adjustment Range | Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360° |
Day& Night | IR Cut Filter |
Wide Dynamic Range | 120 dB |
Digital noise reduction | 3D DNR |
Compression Standard | |
Video Compression | H.265/H.264/MJPEG |
H.264 code profile | Main Profile/High Profile |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Triple Streams | Yes |
Image | |
Max. Image Resolution | 2304 × 1296 |
Sub Stream | H.265/H.264/MJPEG |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) | |
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream | H.265/H.264 |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) | |
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement | BLC, 3D DNR |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping | No |
BLC | Support |
3D DNR | Yes |
ROI | Yes |
Picture Overlay | No |
Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Network | |
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video |
mask, Watermark, IP address filtering | |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Audio | With –S model: 1 input (line in), 1 output |
Alarm | With -S model: 1 input, 1 output (up to 12VDC, 30mA) |
Alarm Input | 1 |
Alarm Output | 1 |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button | Yes |
Audio | |
Environment Noise Filtering | Support(-S) |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | |
Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
Recognition | Face Detection |
General | |
IR Range | up to 30 m |
Operation Condition | -30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption | 12 V DC ± 25%, 0.5 A, max. 6 W |
PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W | |
Impact Protection | IK10 |
Weather Proof | IP67 |
Dimensions | Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) |
With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″) | |
Weight | Camera: Approx. 580 g (1.3 lb.) |
With package: 860 g (1.9 lb) |
Hikvision DS 2XM6736FWD IM Mobil IP Kamera Pdf Dosyası888.27 KB
Teknik Kısa
Çözünürlük : 3MP
Ses : Var
Irled : Var
