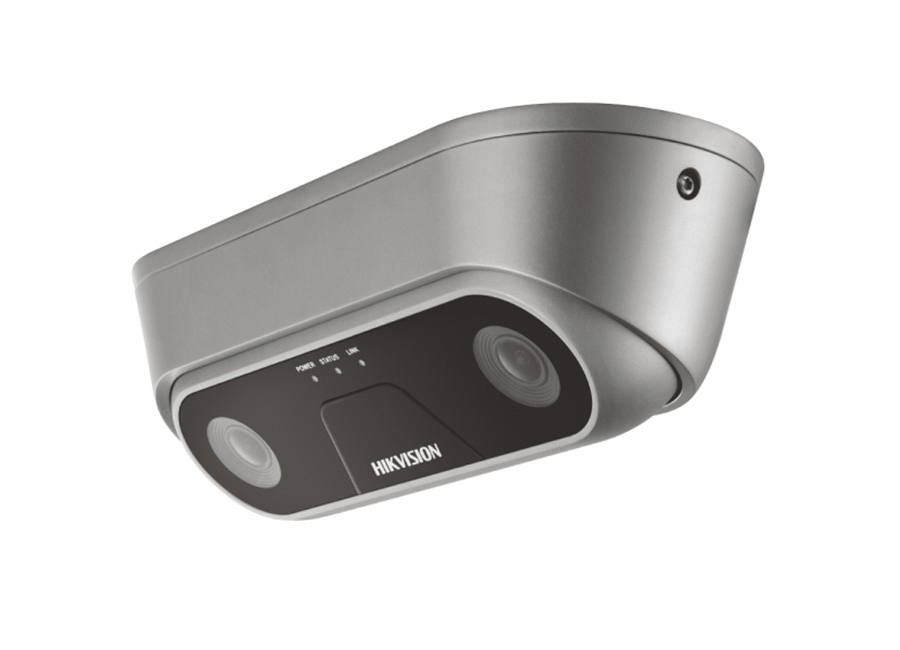

Hikvision iDS 2XM6810F IM/C Mobil IP Kamera
Özellikler
- 1/3” Progressive Scan CMOS
- Dual lens, dual CPU, support stereo views
- 2 mm lens
- Max. resolution 640 × 960
- H.264
- Flash memory storing people counting data
- 3D digital noise reduction
- 12 VDC (wide voltage range: 8 V to 36 V) and PoE
- Up to 3 m IR range
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Shutter time | 1/25 s to 1/10,000 s |
| Lens | 2.8 mm and 4 mm, optional |
| Lens Mount | M12 |
| Adjustment Range | Tilt: 0° to 45° |
| Day& Night | Auto |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264 |
| H.264 code profile | Baseline Profile/Main Profile/High Profile |
| Video bit rate | 32Kbps~8Mbps |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 640 × 960 |
| Frame Rate | 24fps/25fps |
| Sub Stream | 50Hz: 25fps (640 × 960) |
| 60Hz: 24fps (640 × 960) | |
| Image Enhancement | 3D DNR |
| Wi-Fi Specification (-W) | |
| Wireless Range | 50m(depend on environment) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General | |
| Operation Condition | -30°C to +60°C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Consumption | 12 VDC, max. 7 W, 0.6A |
| PoE (802.3af, 36 V to 57 V), max. 7 W, 0.2A to 0.13A | |
| IR Range | Up to 3 m |
| Dimensions | Camera: 216 × 87 × 57 mm (8.51″ × 3.41″ × 2.22″) |
| Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″) | |
Weight | Approx.850 g (1.87 lb.), 1100 g (2.43 lb.) with package |
Hikvision iDS 2XM6810F IM/C Mobil IP Kamera Pdf Dosyası752.31 KB
Teknik Kısa
Irled : Var
