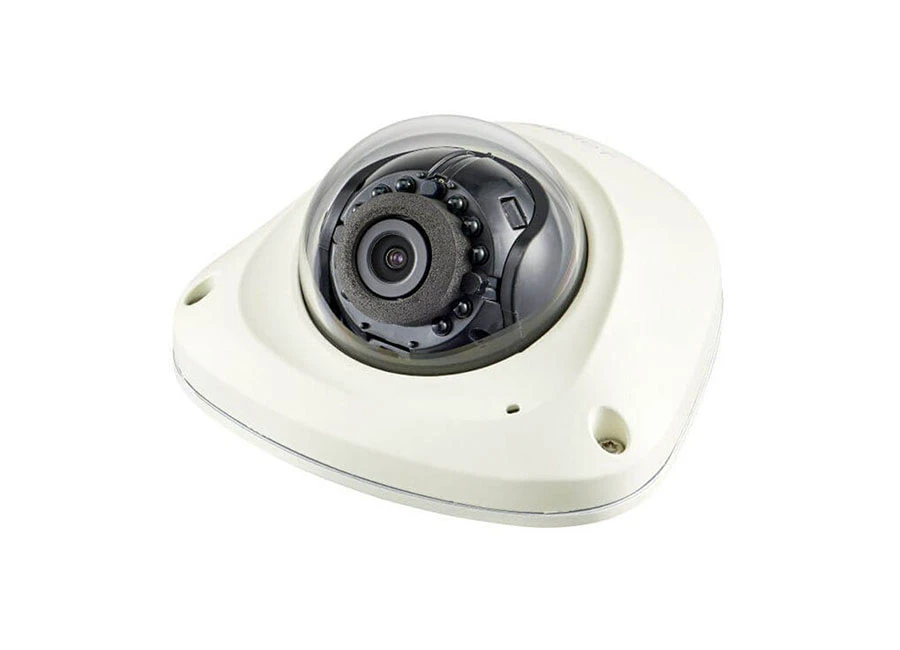

Samsung XNV 6022RM Mobil Ip Kamera
Özellikler
- Maxsimum 2Megapixel (1920 x 1080) resolution
- Maxsimum 60fps@all resolutions (H.265 / H.264)
- 0.04Lux@F2.0 (Color), 0Lux (B/W : IR LED On)
- Built-in 3.6mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB)
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Digital auto tracking, Sound classification
- Motion detection, Handover
- SD/SDHC/SDCX memory slot (Max. 256GB)
- IR viewable length 15m, IP66, IK10, NEMA4X
- Hallway view, PoE, LDC, M12 connector support
Teknik Özellikler
VIDEO | |
Imaging Device | 1/2.8" 2M CMOS |
Total Pixels | 1,945(H) x 1,109(V) 2.16M |
Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
Scanning System | Progressive Scan |
Min. Illumination | Color : 0.04Lux (F2.0), B/W : 0Lux (IR LED On) |
S / N Ratio | 50dB |
Video Out | USB : Micro USB type B, 1280 x 720, for installation |
LENS | |
Focal Length (Zoom Ratio) | 3.6mm fixed |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H : 94.8° / V : 49.3° / D : 114.3° |
Focus Control | Manual |
Lens / Mount Type | Fixed / Board type |
PAN / TILT / ROTATE | |
Pan / Tilt / Rotate Range | ±5° / 0° ~ 67° / ±90° |
OPERATIONAL | |
IR Viewable Length | 15m (49.21ft) |
Camera Title | Off / On (Displayed up to 85 characters) |
- W/W : English / Numeric / Special characters | |
- China : English / Numeric / Special / Chinese characters | |
- Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
Day & Night | Auto (ICR) / Color / B/W / Schedule |
Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
Wide Dynamic Range | 150dB |
Contrast Enhancement | SSDR (Off / On) |
Digital Noise Reduction | SSNRV (2D + 3D noise filter) (Off / On) |
Digital Image Stabilization | Off / On |
Defog | Off / Auto / Manual |
Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
Privacy Masking | Off / On (32ea, polygonal zones) |
- Color : Gray / Green / Red / Blue / Black / White - Mosaic | |
Gain Control | Off / Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
Contrast | Level adjustment |
LDC (Lens Distortion Correction) | Off / On (5 Levels with min / max) |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
Digital PTZ | 24x, Digital PTZ (Preset, Group) |
Flip / Mirror | Off / On, Hallway view : 90°/270° |
Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, |
Motion detection, Digital auto tracking, Sound classification (w/ external MIC) | |
Alarm Triggers | Motion detection, Video & Audio analytics, Network disconnect |
Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset |
Audio Noise Reduction | Off / On |
Pixel Counter | Support |
NETWORK | |
Ethernet | M12 connector (10/100 BASE-T) |
Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
Max. Framerate | H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps |
Smart Codec | Manual mode (Area-based : 5ea) |
WiseStream II | Support |
Video Quality Adjustment | H.265 / H.264, MJPEG : Target bitrate level control |
Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
Streaming Capability | Multiple streaming (Up to 10 profiles) |
Audio In | Selectable (Mic in / Line in), Built-in micophone |
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm | |
Audio Out | Line out, Max output level : 1Vrms |
Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, |
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz | |
Audio Communication | Bi-dierctional (2-Way) |
IP | IPv4, IPv6 |
Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
Security | HTTPS(SSL) login authentication, Digest login authentication, |
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 users at unicast mode |
Edge Storage | SD/SDHC/SDXC 1slot (up to 256GB) |
- Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for instant recording | |
Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
Non-plugin Webviewer | |
- Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 | |
(Window 64bit only), Apple Safari 9 (Mac OS X only) | |
Plug-in Webviewer | |
- Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only) | |
Central Management Software | SmartViewer, SSM |
ENVIRONMENTAL | |
Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
* Start up should be done at above -20°C (-4°F) | |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
Ingress Protection | IP66 |
Vibration Resistance | EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, |
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 | |
EN61000-4-6:2009, EN50155:2007, NEMA 4X | |
Vandal Resistance | IK10, NEMA4X |
ELECTRICAL | |
Input Voltage / Current | PoE (IEEE802.3af, Class3) |
Power Consumption | Max. 6.7W |
MECHANICAL | |
Color / Material | Ivory (NCS S 0502-Y) / Metal |
Dimensions (WxHxD) | 98.9 x 52.0 x 100.0mm (3.89" x 2.05" x 3.94") |
Weight | 295g (0.65 lb) |
Teknik Kısa
Çözünürlük : 2MP (1080P)
