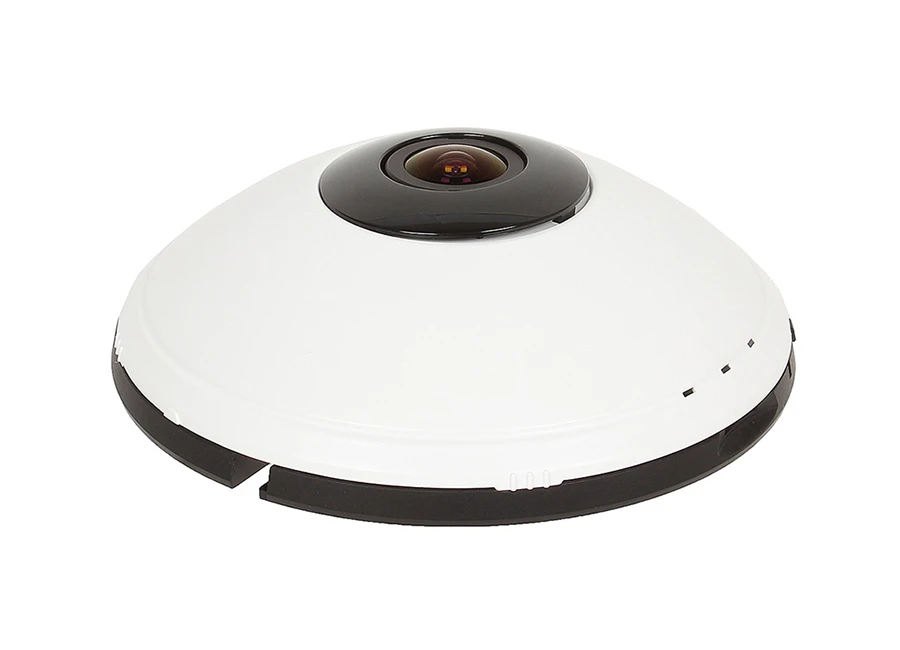

D-Link DCS 6010L A1B Panoramik IP HD Kamera
Özellikler
Camera Hardware Profile
- 1/3.2" 2 megapixel progressive CMOS sensor
- Minimum illumination: 2 lux
- Built-in microphone and speaker
- 10x digital zoom
- Focal length: 1.25 mm
- Aperture: F2.0
- Angle of view:
(H) 180°
(V) 180°
(D) 180°
Image Features
- Configurable image size, quality, frame rate, and bit rate
- Fisheye distortion correction
- Time stamp and text overlays
- Configurable brightness, saturation, contrast, and sharpness
- Configurable motion detection windows
Video Compression
- Simultaneous H.264/MPEG-4/MJPEG format compression
- H.264/MPEG-4 multicast streaming
- JPEG for still images
Video Resolution
- 1600 x 1200, 1200 x 900, 800 x 600, 400 x 300 up to 15 fps recording*
Audio Support
- G.726
- G.711
External Device Interfaces
- 10/100 BASE-TX Fast Ethernet port
- 802.11n wireless
- MicroSD/SDHC card slot
Network Protocols
- IPv6
- IPv4
- TCP/IP
- UDP
- ICMP
- DHCP client
- NTP client (D-Link)
- DNS client
- DDNS client (D-Link)
- SMTP client
- FTP client
- HTTP/HTTPS
- Samba client
- PPPoE
- UPnP port forwarding
- RTP/RTSP/RTCP
- IP filtering
- QoS
- CoS
- Multicast
- IGMP
- ONVIF compliant
Security
- Administrator and user group protection
- Password authentication
- HTTP and RTSP digest encryption
System Requirements for Web Interface
- Browser: Internet Explorer, Firefox, Chrome
Event Management
- Motion detection
- Event notification and uploading of snapshots/video clips via e-mail or FTP
- Supports multiple SMTP and FTP servers
- Multiple event notifications
- Multiple recording methods for easy backup
Remote Management
- Take snapshots/video clips and save to local hard drive or NAS via web browser
- Configuration interface accessible via web browser
Mobile Support
- Windows 7/Vista/XP system, Pocket PC, or mobile phone
- mydlink mobile app for iOS and Android mobile devices
D-ViewCam™ System Requirements
- Operating System: Microsoft Windows 7/Vista/XP
- Web Browser: Internet Explorer 7 or higher
- Protocol: Standard TCP/IP
D-ViewCam™ Software Functions
- Remote management/control of up to 32 cameras
- Viewing of up to 32 cameras on one screen
- Supports all management functions in web interface
- Scheduled motion triggered, or manual recording options
Teknik Özellikler
| Weight |
| 267 g ± 5% |
| External Power Adapter |
| Input: 100 to 240 V AC, 50/60 Hz |
| Output: 5 V DC, 1.2 A |
| Power Consumption |
| 3.9 watts max. |
| Temperature |
| Operating: 0° to 40°C |
| Storage: -20° to 70°C |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE |
| CE LVD |
| FCC |
| C-Tick |
D-Link DCS 6010L A1B Panoramik IP HD Kamera Pdf Dosyası1.99 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
