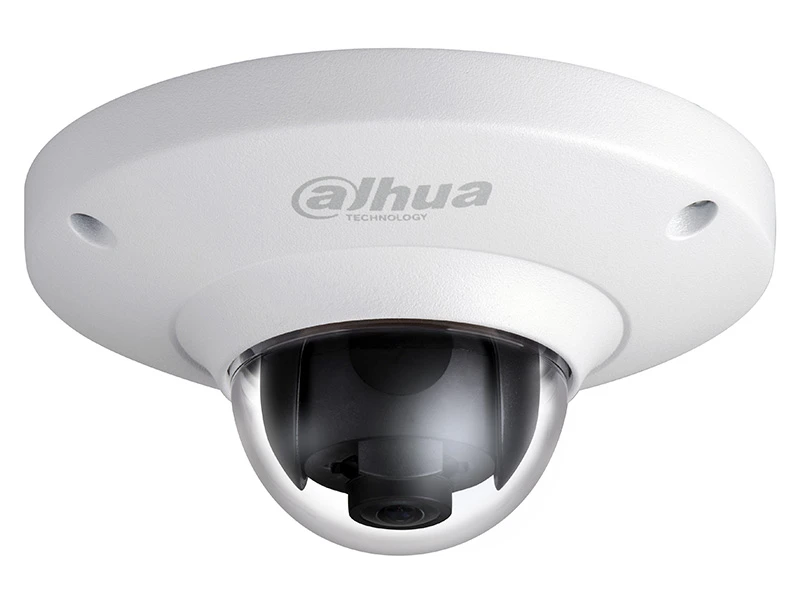

Dahua IPC EB5400 M Panoramik IP Kamera
Özellikler
- 1.18 mm Sabit Lens
- F:2.0, H:180°
- 1/3" 4MP progressive scan CMOS,
- 15fps @ 4MP(2560x1440),
- H.264/MJPEG,Renklide 0.01lux/F2.0
- Siyah Beyazda 0.001Lux @ F2.0
- DWDR , 3D-DNR
- Gece/Gündüz (ICR)
- AWB, AGC, BLC, HLC
- Akıllı Üçlü Yayın
- Çoklu Network Görüntüleme
- 1/1xSes ,1/1xAlarm, 1xRJ45(100M), IK10
- PoE
- 64Gb Micro SD Memory
Teknik Özellikler
| Camera |
| Image Sensor : 1/3” 4Megapixel progressive scan CMOS |
| Effective Pixels : 2592(H)x1520(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual 1/3(4)-1/10000 |
| Min. Illumination : 0.01lux/F2.0(color) ,0.001Lux @ F2.0(B/W) |
| S/N Ratio : More than 50dB |
| Video Output : N/A |
| Camera Features |
| Max. IR LEDs Length : N/A |
| Day/Night : Auto(Electronic)/Color/B/W |
| Backlight Compensation : BLC/HLC/DWDR |
| White Balance : Auto/Manual |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 1.18mm |
| Max Aperture : F2.0 |
| Focus Control : Manual |
| Angle of View : H:180° |
| Lens Type : Fixed lens |
| Mount Type : Board-in Type |
| Video |
| Compression : H.264/ MJPEG |
Resolution :4M(2592×1520)/3M(2048×1520)/UXGA(1600×1200)/1.3M(1280×960)/720P(1280×720)/
D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate Main Stream : 4M(1-15fps)/ 3M (1 - 25/30fps) |
| Sub Stream : D1/CIF(1 - 25/30fps) |
| Bit Rate : H.264: 20K - 8192Kbps |
| Audio |
| Compression : G.711a/G.711u/PCM |
| Interface : 1/1 channel In/Out(Built in Mic) |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Compatibility : ONVIF,PSIA,CGI |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 64GB |
| RS485 : N/A |
| Alarm : 1/1 channel In/Out |
| PIR Sensor Range : N/A |
| General |
| Power Supply : DC12V,PoE |
| Power Consumption : Max 6W |
| Working Environment : -30°C-+60°C, Less than 95% RH |
| Ingress Protection : N/A |
| Vandal Resistance : IK10 |
| Dimensions : Φ110mm×54mm |
| Weight : 0.25kg |
Teknik Kısa
Çözünürlük : 4MP
Depolama : Var
Ses : Var
