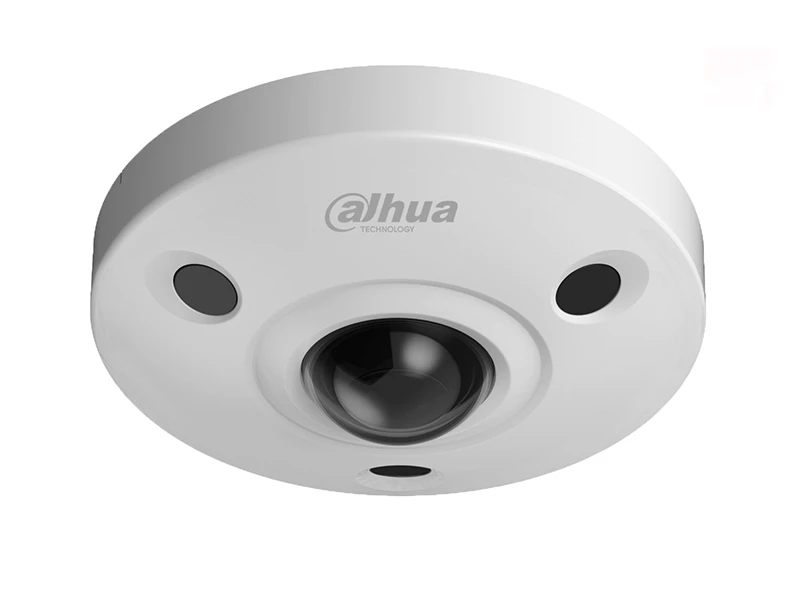

Dahua IPC EBW8630 IVC Panoramik IP Kamera

Özellikler

1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
H.265/H.264 triple-stream encoding
Max 25/30fps@6M(3072x2048)
Multiple dewarped Mode
Day/Night(ICR), 3DNR, AWB, AGC, BLC > Smart detection
Intelligent Function
Max. IR LEDs length 10m
Micro SD memory, IP67, IK10, PoE
Panamorph Lens RPL: B4QQV

Teknik Özellikler

Camera
Image Sensor	1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels	3072(H)x2048(V)
RAM/ROM	1024MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.005Lux/F2.8( Color,1/3s,30IRE) 0.05Lux/F2.8( Color,1/30s,30IRE) 0Lux/F2.8(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 10m(33ft)
IR On/Off Control	Auto/ Manual
IR LEDs	3
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	1.3mm
Max. Aperture	F2.8
Angle of View	H: 180˚, V:180˚
Optical Zoom	N/A
Focus Control	Fixed
Close Focus Distance	N/A
DORI Distance	Detect	Observe	Recognize	Identify
	21m(69ft)	8m(26ft)	4m(13ft)	2m(7ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	N/A
Intelligence
IVS	Tripwire, Intrusion
Advanced Intelligent Functions	Heat Map
Video
Compression	H.265/H.264
Streaming Capability	3 Streams
Resolution	6M(3072×2048)/ 4M(2048x2048)/3M(2048x1536)/ UXGA(1600x1200)/1.3M(1280x960)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 6M(1~25/30fps) Sub Stream: D1(1 ~ 25/30fps) Third Stream: 1.3M(1 ~ 25/30fps)
	Third Stream: 1.3M(1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3Kbps~ 9984Kbps H.264: 8Kbps~ 16384Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	N/A
Smart IR	Support
Defog	Support
Digital Zoom	16x
Flip	N/A
Mirror	N/A
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/AAC/ G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNM
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out, 1 Built-in Mic
RS485	N/A
Alarm	2 channel In: 5mA 5VDC 2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<12w td="">
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ149.8mm×50.7mm(Φ5.9”×2”)
Net Weight	0.58kg(1.28lb)
Gross Weight	1.0kg(2.2lb)
