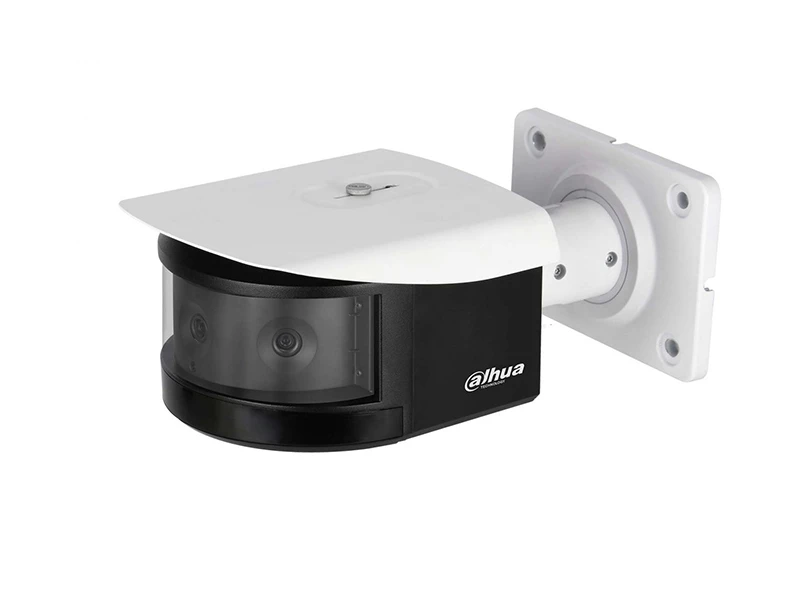

Dahua IPC PF83230 A180 Panoramik IP Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor |
Four 1/2.0” 8Megapixelprogressive scan CMOS
|
||||
| Effective Pixels | 8640(H)x3840(V) | ||||
| RAM/ROM | 3072MB/384MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination |
0.009Lux/F2.4( Color,1/3s,30IRE)
0.05Lux/F2.4( Color,1/30s,30IRE)
0.005Lux/F2.4( B/W,1/3s,30IRE)
0.03Lux/F2.4( B/W,1/30s,30IRE)
|
||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | N/A | ||||
| IR On/Off Control | N/A | ||||
| IR LEDs | N/A | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-in | ||||
| Focal Length | 4.5mm | ||||
| Max. Aperture | F2.4 | ||||
| Angle of View | H: 180˚, V:80˚ | ||||
| Optical Zoom | N/A | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | N/A | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 4.5mm |
90m
(295ft)
|
36m
(118ft)
|
18m
(59ft)
|
9m
(30ft)
|
|
| Pan/Tilt/Rotation | |||||
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~355˚ | ||||
| Intelligence | |||||
| Event Trigger |
Network disconnection , IP address conflict,IllegalAccess,Storage anomaly
|
||||
| Advanced Intelligent Functions | N/A | ||||
| Video | |||||
| Compression | |||||
| Smart Codec | N/A | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution |
8640x3840/3840×1680/2880×1264/1920x832/1284x560/1032X452
|
||||
| Frame Rate | Main Stream: 8640x3840 (1~25fps) | ||||
|
Sub Stream: 1032X452 (1 ~ 25fps)
Third Stream: 1920x832 (1 ~ 25fps)
|
|||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate |
H.265: 3840Kbps~ 32768Kbps
H.264: 10752Kbps~ 32768Kbps
|
||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / DWDR | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | N/A | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image Stabilization(EIS) | N/A | ||||
| Smart IR | N/A | ||||
| Defog | N/A | ||||
| Digital Zoom | 16x | ||||
| Flip | N/A | ||||
| Mirror | N/A | ||||
| Privacy Masking | N/A | ||||
| Audio | |||||
| Compression | G.711a/G.711Mu/AAC/ G.726 | ||||
| Network | |||||
| Ethernet | RJ-45 (100/1000Base-T) | ||||
| Protocol | |||||
| Interoperability | API | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 7 Users/20 Users | ||||
| Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB
|
||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS, DMSS | ||||
| Smart Phone | N/A | ||||
| Certifications | |||||
| Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|
||||
| Interface | |||||
| Video Interface | N/A | ||||
| Audio Interface | 2/1 channel In/Out | ||||
| RS485 | N/A | ||||
| Alarm |
2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC
|
||||
| Electrical | |||||
| Power Supply | DC36V | ||||
| Power Consumption | <35w td=""> | ||||
| Environmental | |||||
| Operating Conditions |
-40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH
|
||||
| Storage Conditions |
-40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH
|
||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions |
411mm×251.7mm×114.4mm
(16.18” ×9.91” ×4.5”)
|
||||
| Net Weight | 6.9kg(15.2lb) | ||||
| Gross Weight | 10kg(22lb) | ||||
Dahua IPC PF83230 A180 Panoramik IP Bullet Kamera Pdf Dosyası916.3 KB
Teknik Kısa
Çözünürlük :
8MP
