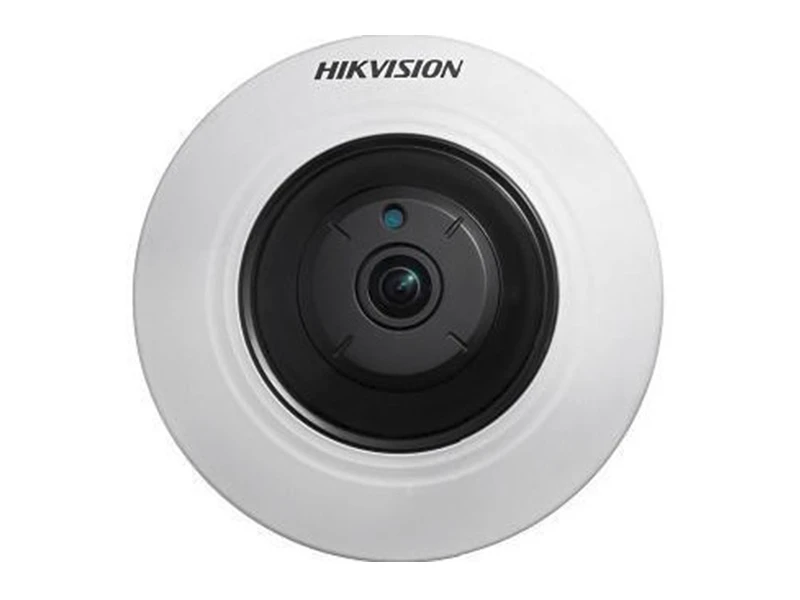

Haikon DS 2CD2942F IWS IP HD Panoramik Kamera
Özellikler
- 1/3” Progressive Scan CMOS
- Up to 4 megapixel resolution
- Fisheye & PTZ view
- 3D DNR
- -I: IR range approx. 8 meters
- -W: Support Wi-Fi, support WPS configuration with one touch
- -S: audio & alarm I/O
- Support 128G on-board storage
- 12 VDC ± 10% / PoE
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/3" Progressive Scan CMOS |
| Min. Illumination: | Color: 0.01lux @(F1.2, AGC ON), 0.018lux @(F1.6, AGC ON), lux with IR |
| Shutter time: | 1/3 s ~ 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 1.6mm, F1.6 Angle of view: 186°(horizontal), 106°(vertical) |
| Lens Mount: | M12 |
| Day& Night: | Electronic (-I: IR cut filter with auto switch) |
| Compression Standard | |
| Video Compression: | H.264/MJPEG |
| H.264 code profile: | Baseline Profile / Main Profile |
| Video bit rate: | 32Kbps~8Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Frame Rate: | 50Hz: 12.5fps(2560 × 1440), 25fps(1920 × 1080, 1280 × 720) |
| 60Hz: 15fps(2560 × 1440), 30fps(1920 × 1080, 1280 × 720) | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Security: | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Wi-Fi Specification (-W) | |
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | 20/40MHz Support |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transmission Rate: | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Wireless Range: | 50m(depend on environment) |
| General | |
| Power Consumption: | Max. 5.55 W |
| Dimensions: | ø119.9 x 41.2(ø4.72” × 1.62”) |
| Weight: | 600 g (1.32 lbs) |
Haikon DS 2CD2942F IWS IP HD Panoramik Kamera PDF Dosyası643.15 KB
Teknik Kısa
Çözünürlük : 4MP
Ses : Var
Irled : Var
