Açıklama

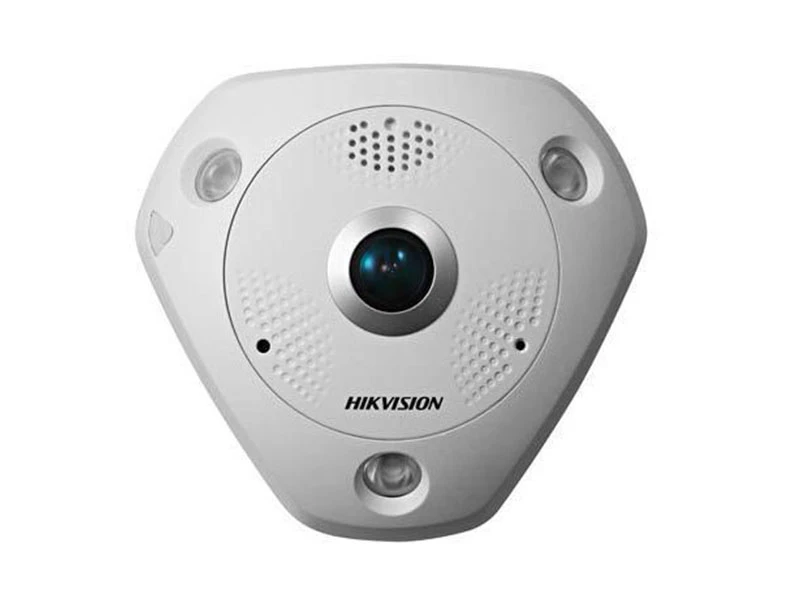

Hikvision DS 2CD6332FWD IVS Panoramik Ip Kamera
Özellikler
- 1/3" progressive scan CMOS
- Support Heat Map
- 3 mega-pixel image sensor
- Up to 1536 x 1536 resolution, 30fps
- 360° panoramic view
- Multiple viewing modes
- Virtual PTZ
- Up to 15m IR range
- Bulit-in microphone and speaker
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.1 Lux @(F1.2,AGC ON), |
| 0.28Lux @ (F2.0,AGC ON ), | |
| 0 lux with IR | |
| Shutter time | 1/25(1/30) s to 1/100,000 s |
| Lens | 1.19mm, F2.0 |
| Angle of view: 180°(wall mount), 360°(ceiling mount) | |
| Auto Iris | DC drive |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 2048×1536 |
| Frame Rate | Main Stream: |
| 50Hz: 25fps (2048 × 1536, 1536 × 1536) | |
| 60Hz: 30fps (2048 × 1536, 1536 × 1536) | |
| Sub Stream | 50Hz: 25fps (720 × 720, 704 × 576) |
| 60Hz: 30fps (720 × 720, 704 × 480) | |
| Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Picture Overlay | 128 × 128, BMP 24bit, zone configurable |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio | Internal Microphone and Speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 12.18 W |
| Impact Protection | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof | IP66 |
| IR Range | 15 meters |
| Dimensions | 164x152.8x43.8mm(6.46”x6.02”x1.72”) |
| Weight | 1400g |
| NOTE | * "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface |
Hikvision DS 2CD6332FWD IVS Panoramik Ip Kamera Pdf Dosyası1009.77 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 3MP
Irled : Var
