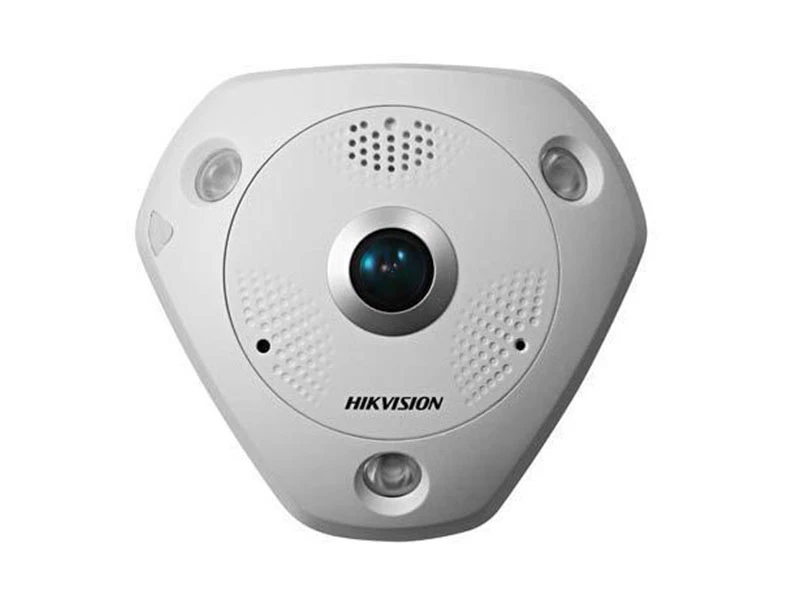

Hikvision DS 2CD6362F IV Panoramik IP Kamera

Özellikler

1/1.8" progressive scan CMOS
Support Heat Map
Up to 3072 x 2048 resolution, 30fps
360° panoramic view
Multiple viewing modes
Virtual PTZ
Up to 15m IR range
Bulit-in microphone and speaker

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	0.05 Lux @(F1.2,AGC ON),
	0.3Lux @ (F2.0,AGC ON ),
	0 lux with IR
Shutter time	1/25(1/30) s to 1/100,000 s
Lens	1.27mm, F2.8
Lens	Angle of view 180°(wall mount), 360°(ceiling mount)
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Dual Stream	Yes
Max. Image Resolution	3072 x 2048
Frame Rate	Main Stream
	50Hz 25fps (3027 × 2048, 2048 × 2048, 1280 × 1280)
	60Hz 24fps (3027 × 2048), 30fps (2048 × 2048, 1280 × 1280)
Sub Stream	50Hz 12.5fps (720 × 720, 704 × 576)
Sub Stream	60Hz 15fps (720 × 720, 704 × 480)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
ROI	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protocols	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio	Internal Microphone and Speaker
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 12 W
Impact Protection	IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof	IP66
IR Range	15 meters
Dimensions	164x152.8x43.8mm(6.46”x6.02”x1.72”)
Weight	1400g
NOTE	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
