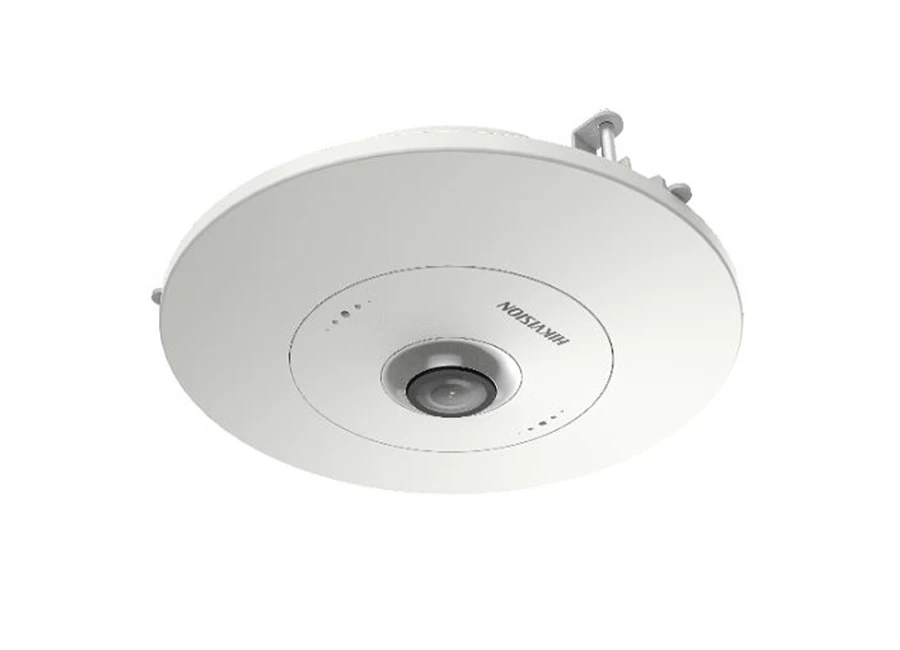

Hikvision DS 2CD6365G0E S/RC Fisheye IP Kamera

Özellikler

1/1.8” Progressive Scan CMOS
Maximum 3072 × 2048 @30fps
Up to 14 live view display modes
120 dB WDR
Built-in microphone
Smart features
6 behavior analyses, and 1 exception detection
In-ceiling Mounting

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.01 Lux @ (F1.2, AGC ON),
Minimum Aydınlatma	B/W: 0.001 Lux @ (F1.2, AGC ON)
Slow shutter	Yes
Objektif Hızı	1 s to 1/100,000 s
Lens	1.27 mm
Lens Mount	M12
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	-S: G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Çift Akış	Yes
Max. Image Resolution	3072 x 2048
Ana Akış	50Hz: 25fps (720 × 720, 720 × 480)
Ana Akış	60Hz: 30fps (720 × 720, 720 × 480)
Çerçeve Hızı	50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Çerçeve Hızı	60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Görüntü İyileştirme	BLC, HLC, defog, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, illegal login, HDD full, HDD error
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Audio	1 input, 1 output
Alarm	1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support(-S)
Audio Sampling Rate	8 kHz/16 kHz
General
Power Supply	12 V DC ± 20%, PoE (802.3af, class 3)
Güç Tüketimi	12 VDC, 0.5 A, max. 6 W
Güç Tüketimi	PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W
Boyutlar	Φ165 × 69 mm (6. 5" × 2.7")
Ağırlık	Approx. 480 g (1.1 lbs)
