Açıklama

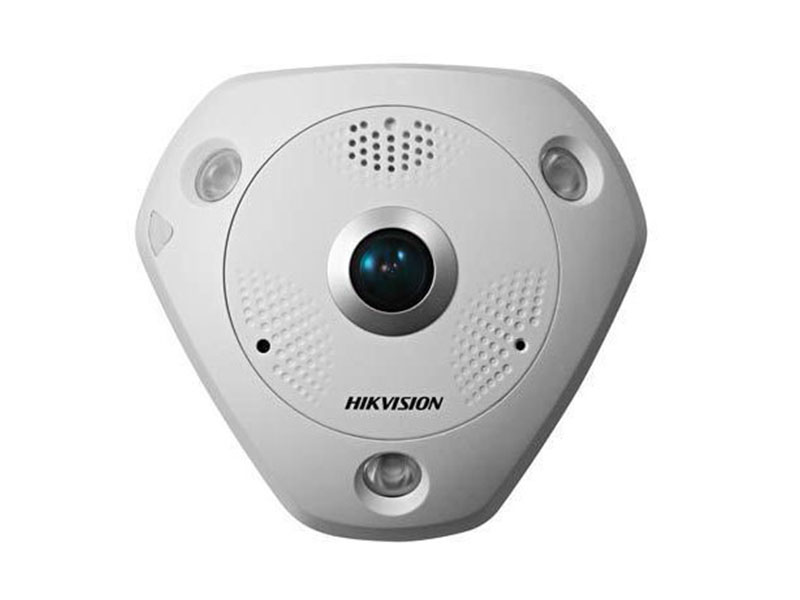

Hikvision DS 2CD63C2F I Panoramik IP Kamera

Özellikler

1/1.7” Progressive Scan CMOS
Support Heat Map
12 megapixel image sensor
Up to 4000 × 3072 resolution
Multiple viewing modes
Line crossing and intrusion detection
Ceiling, wall or table mount modes
Up to 15m IR range
360° view angle
Built-in microphone & speaker
Audio/Alarm IO/ RS485(-S model)
IP66(-V model)
IK10 vandal proof(-V model)

Teknik Özellikler

Camera
Image Sensor	1/1.7" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	0.01 Lux @ (F1.2, AGC ON),
	0.04 Lux @ (F2.4, AGC ON),
	0 Lux with IR
Shutter time	1/25(1/30)s ~ 1/100,000s
Lens	2mm @F2.4, angle of view: 360°
Lens Mount	M12
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View
Video bit rate	32Kbps~16Mbps
Audio Compression	-S: G.711/G.726/MP2L2
Dual Stream	Yes
Max. Image Resolution	4000 × 3072
Frame Rate	Main Stream:
	50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560)
	60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)
Sub Stream	50Hz: 12.5fps (720 × 720, 720 × 576)
Sub Stream	60Hz: 15fps (720 × 720, 704 × 480)
Image Settings	Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance
3D DNR	Support
ROI	Support
Day/Night Switch	Auto/Schedule/Alarm Trigger
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio Input	1 3.5mm audio interface, Mic in/Line in (-S); 1 built-in microphone by default, 24db
Audio Output	1 3.5mm audio output interface (-S);
Audio Output	1 built-in speaker by default, support echo cancellation
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port, 1 RS 485 interface (-S)
Alarm Input	1
Alarm Output	1
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	Indoor: -10 °C – 50 °C (14 °F – 122 °F)
	-V: -30 °C – 60 °C (-22 °F – 140 °F)
	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 14.7 W
Impact Protection	-V: IEC60068-2-75Eh, 20J; EN50102, up to IK10
Weather Proof	IP66
IR Range	15 meters
Dimensions	164x152.8x43.8mm(6.46”x6.02”x1.72”)
Weight	1400g
NOTE	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
