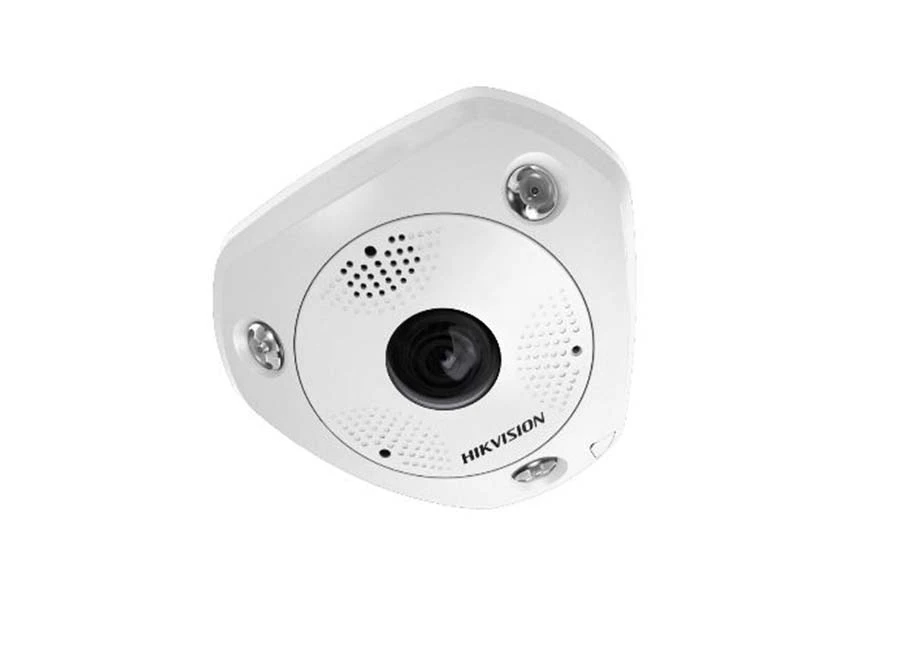

Hikvision DS 2CD63C5G0E IV IR IP Fisheye Kamera

Özellikler

1/1.7” Progressive Scan CMOS
Max. 4000 × 3000 @20fps
Up to 15 live view display modes
Digital WDR
Up to 15m IR range
Built-in microphone and speaker
Smart features
6 behavior analyses, and 3 exception detections

Teknik Özellikler

Camera
Image Sensor	1/1.7" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.015 Lux @ (F1.2, AGC ON),
Minimum Aydınlatma	B/W: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Slow shutter	Yes
Objektif Hızı	1 s to 1/100,000 s
Lens	2 mm
Lens Mount	M12
Wide Dynamic Range	120 dB
Compression Standard
H.264 Türü	Baseline Profile/ Main Profile /High Profile
Video bit rate	32Kbps~16Mbps
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Çift Akış	Yes
Max. Image Resolution	4000 × 3000
Ana Akış	50Hz: 25fps 720 × 720)
Ana Akış	60Hz: 20fps (720 × 720)
Çerçeve Hızı	50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)
Çerçeve Hızı	60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
Görüntü İyileştirme	BLC, HLC, defog, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Alarm Trigger	Motion detection, video tampering, illegal login, HDD full, HDD error
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Audio	1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm);2 built-in microphone, 1 built-in speaker, mono sound
Alarm	1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
Reset Butonu	Yes
General
Power Supply	12 VDC±20%, PoE (802.3af, class 0),-S model: two-core terminal block,Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
GÜç Tüketimi	12 VDC, 0.9 A, max. 11 W
GÜç Tüketimi	PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W
Impact Protection	IK 08
Weather Proof	IP67
Boyutlar	Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6" × 1.8")
Boyutlar	With –V model: 167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
Ağırlık	Approx. 1400 g (3.09 lbs)
