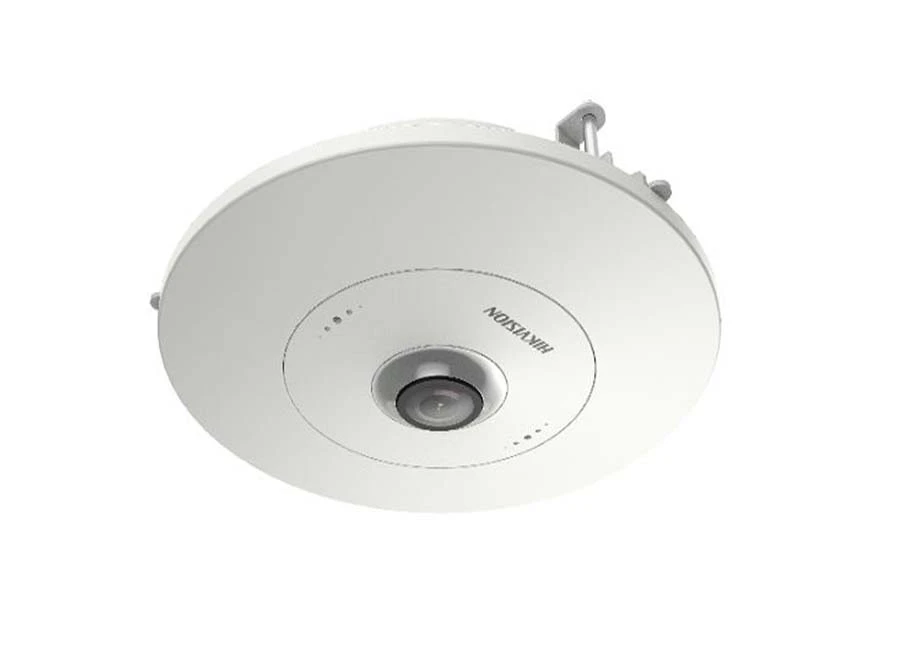

Hikvision DS 2CD63C5G0E/RC IR IP Fisheye Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/1.7" Progressive Scan CMOS |
İşaret Sistemi | PAL/NTSC |
Minimum Aydınlatma | Color: 0.06 Lux @ (F2.4, AGC ON), |
B/W: 0.012 Lux @ (F2.4, AGC ON) | |
Slow shutter | Yes |
Objektif Hızı | 1 s to 1/100,000 s |
Lens | 2 mm |
Lens Mount | M12 |
Wide Dynamic Range | Digital WDR |
Compression Standard | |
H.264 Türü | Baseline Profile/Main Profile/High Profile |
Video bit rate | 32Kbps~16Mbps |
Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 4000 × 3000 |
Ana Akış | 50Hz: 20fps (720 × 720, 640 × 480) |
60Hz: 20fps (720 × 720, 640 × 480) | |
Çerçeve Hızı | 50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) |
60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560) | |
Görüntü İyileştirme | BLC, HLC, defog, 3D DNR |
Image Settings | Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
Resim Yerleşimi | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Network | |
Alarm Trigger | Motion detection, video tampering, illegal login, HDD full, HDD error |
Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Intelligent | |
Behavior analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
Interface | |
Alarm | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A |
Reset Butonu | Yes |
Audio | |
Çevre Gürültü Filtreleme | Support(-S) |
Audio Sampling Rate | 8 kHz/16 kHz |
General | |
Güç Tüketimi | 12 VDC, 0.5 A, max. 6 W |
PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W | |
Boyutlar | Φ165 × 69 mm (6. 5" × 2.6") |
Ağırlık | Approx. 480 g (1.1 lbs) |
Hikvision DS 2CD63C5G0E/RC IR IP Fisheye Kamera Pdf Dosyası892.82 KB
Hikvision DS 2CD63C5G0ERC IR IP Fisheye Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.74 MB
Teknik Kısa
Çözünürlük : 12MP
Irled : Var
