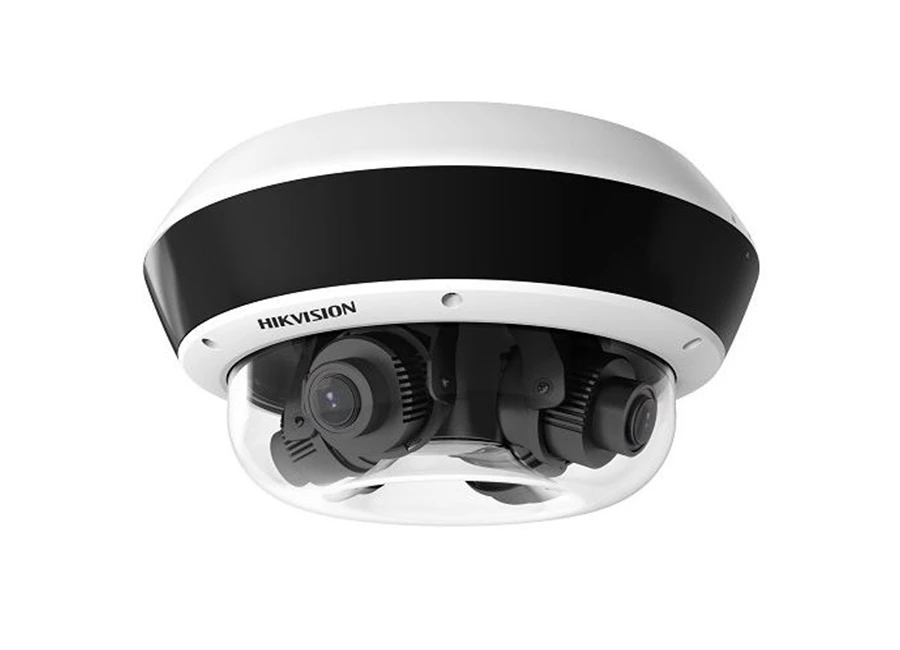

Hikvision DS 2CD6D24FWD Z Panoramik IP Kamera

Özellikler

1/2.7” Progressive Scan CMOS
1920 × 1080 @ 30fps
FOV: horizontal 30° to 96.3°, vertical 17° to 54°, diagonal 34° to 121°
H.265, H.264, H.265+, H.264+
Fiber optical transmission, optional
10 m to 30 m IR range
IP67, IK10
4 flexible lens
6 behavior analyses, 4 exception detection, and face detection

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON)
	B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON)
	0 Lux with IR on
Objektif Hızı	1 s - 1/100,000 s
Lens	2.8mm to 12mm
Lens Mount	φ14
Ayarlanan Aralık	Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
H.264 Türü	Baseline Profile / Main Profile / High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Çift Akış	Yes
Ana Akış	50Hz: 25fps (704 × 576, 640 × 480)
Ana Akış	60Hz: 30fps (704 × 480, 640 × 480)
Çerçeve Hızı	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Üçüncül Akış	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
Üçüncül Akış	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Görüntü İyileştirme	BLC/ 3D DNR/ROI/Defog
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC	Support
Akıllı Buğu Giderme	Support
3D DNR	Support
Resim Yerleşimi	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
General Function	User Authentication, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Alarm	2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )(-S model)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support(-S)
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Güç Tüketimi	12 VDC ± 20%: max. 28 W/2.3 A
	24 VAC ± 20%, max. 50 to 60 Hz/2.5 A (for customization)
	-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A
	-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Impact Protection	IK10
Weather Proof	IP67
IR Range	Approx. 10 to 30 meters
Boyutlar	Camera: Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
Boyutlar	Package: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
Ağırlık	Camera: Approx. 4.7 kg (10.3 lb.)
Ağırlık	With package: Approx. 7.7 kg (16.8 lb.)
