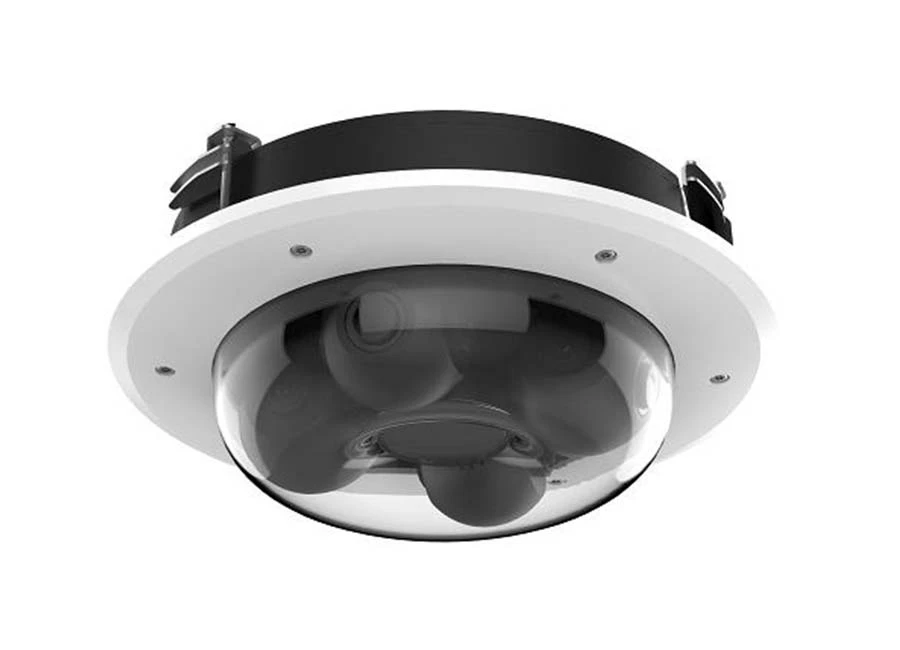

Hikvision DS 2CD6D54G1 ZS/RC IP PanoVu Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color: 0.0125 Lux @ (F1.9, AGC ON); B/W: 0.0025 Lux @ (F1.9, AGC ON) |
| Slow shutter | Yes |
| Objektif Hızı | 1 s to 1/100,000 s |
| Lens | Varifocal lens, 2.8 to 8 mm |
| Lens Mount | φ14 |
| Ayarlanan Aralık | Pan: -60° to 60°, tilt: 10° to 90° |
| Wide Dynamic Range | Digital WDR |
| Focus | Manual, semi-auto |
| Compression Standard | |
| H.264 Türü | Baseline Profile/ Main Profile/ High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Çift Akış | Yes |
| Üçüncü Akım | Yes |
| Image | |
| Max. Image Resolution | 2560×1920 |
| Ana Akış | 50Hz: 25fps (704 × 576, 640 × 480) |
| 60Hz: 24fps (704 × 480, 640 × 480) | |
| Çerçeve Hızı | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) |
| 60Hz: 24fps (2560 × 1920, 2048 × 1536,1920 × 1080, 1280 × 720) | |
| Üçüncül Akış | 50Hz: 6fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: 8fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
| Görüntü İyileştirme | BLC, HLC, 3D DNR, Defog, EIS |
| Sinyal Gürültü Oranı | ≥52dB |
| Bölgesel Kırpma | Yes |
| ROI | 4 fixed regions and dynamic face tracking for each stream |
| Resim Yerleşimi | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Network | |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, |
| SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| System Compatibility | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Interface | |
| Audio | 1 audio input (line in), 1 audio output (line out), mono sound |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1A) |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Audio | |
| Çevre Gürültü Filtreleme | Support |
| Smart Feature-set | |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, up to 4 lines configurable |
| Intrusion detection, up to 4 regions configurable | |
| Region entrance detection, up to 4 regions configurable | |
| Region exiting detection, up to 4 regions configurable | |
| Unattended baggage detection, up to 4 regions configurable | |
| Object removal detection, up to 4 regions configurable | |
| Scene change detection, audio exception detection, defocus detection | |
| General | |
| Power Supply | 12 VDC± 20%, reverse polarity protection; three-core terminal block;24 VAC ± 20%;PoE (802.3af, class 0) |
| GÜç Tüketimi | 12 VDC, 1.2 A, 14 W |
| 24 VAC, 1 A, 14 W | |
| PoE (802.3af, 36 to 57 VDC), 0.36 to 0.22 A, 13 W, class 0 | |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| Boyutlar | Camera: Φ255 × 96 mm (10ʺ × 3.8ʺ) |
| Package: 336 × 261 × 293 mm (13.2ʺ × 10.3ʺ × 11.5ʺ) | |
| Ağırlık | Camera: 2.02 kg (4.5 lb); with package: 3.34 g (7.4 lb) |
Hikvision DS 2CD6D54G1 ZSRC IP PanoVu Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.81 MB
Teknik Kısa
Depolama : Var
