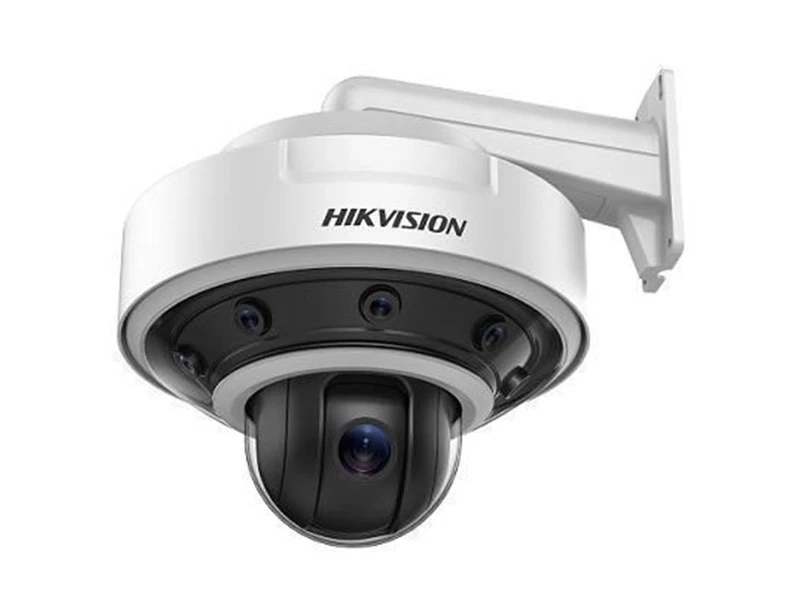

Hikvision DS 2DP0818Z D Panoramik PTZ Kamera
Özellikler
Teknik Özellikler
| Panoramic Camera | |
| Image Sensor | 1/1.9’’ Progressive Scan CMOS |
| Max. Image Resolution | 4096 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.8, AGC ON), B/W: 0.0005Lux @ (F1.8, AGC ON) |
| Lens | f5.0mm/ F2.2 |
| Angle of View | Horizontal angle of view: 180°, Vertical angle of view: 80° |
| Main Stream | 50Hz: 25fps (4096 × 1800, 3840 × 1680,2720×1192); |
| 60Hz: 30fps (4096 × 1800, 3840 × 1680,2720×1192) | |
| Sub Stream | 50Hz:25fps(176 × 144, 352 × 288, 704 × 320) |
| 60Hz:30fps(176 × 144, 352 × 288, 704 × 320) | |
| Third Stream | 50Hz:25fps(176 × 144, 352 × 288, 704 × 320, 1280 × 960, 1280 × 720, 1920 × 1080); |
| 60Hz:30fps(176 × 144, 352 × 288, 704 × 320, 1280 × 960, 1280 × 720, 1920 × 1080) | |
| Image Compression | H.264(Baseline, Main, High Profile)/MJPEG |
| HLC | Support |
| Day& Night | ICR |
| Tracking PTZ Camera | |
| Image Sensor | 1/1.9’’ Progressive Scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Zoom Speed | Approx.6.6s (Optical Wide-Tele) |
| Focal Length | 5.7 – 205.2mm |
| Minimum Illumination | Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON) |
| Angle of View | 58.7°- 2.0°(Wide-Tele) |
| White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Support |
| BLC | On/Off |
| HLC | Support |
| Day & Night | IR Cut Filter |
| Optical Defog | Support |
| ROI encoding | Support 24 areas with adjustable levels |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz:25fps (704×576, 352×288, 176×144) |
| 60Hz:30fps (704×480, 352×240, 176×120) | |
| Third Stream | 50Hz:25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) |
| 60Hz:30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) | |
| Image Compression | H.264(Baseline, Main, High Profile)/MJPEG/MPEG4 |
| WDR | Ture WDR |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s |
| Tilt Range | -15°~ 90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Park Action | Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Scheduled Task | Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Dome adjust/Aux output |
| Power-off memory | Support |
| System Function | |
| One-touch Link | Support |
| Tracking mode | Manual/ Auto/ Mix |
| Number of Targets | Up to 30 targets can be detected at the same time |
| Multiple Target Tracking | Support |
| Smart Detection | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Alarm | |
| Alarm I/O | 7.2 |
| Alarm Trigger | Face detection, Audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, , Network disconnect, IP address conflict, Storage exception |
| Alarm Action | Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send Email/ Upload to FTP |
| Input & Output | |
| Audio Input | 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output | 1 Audio output interface, line level, impedance: 600Ω |
| Network | |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM |
| Protocol | |
| Application programming | Open-ended API, support Onvif, ISAPI, CGI |
| System Integration | |
| Menu | English |
| User/Host Level | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| Simultaneous Live View | Up to 20 users |
| Fiber Cable | 1 10M/100M FC interface, TX1310 / RX1550nm wavelength, 20 km transmission distance |
| Ethernet | 1 RJ45 100M/1000M Ethernet interface |
| RS485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Onboard Storage | Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording |
| General | |
| Power supply | DC 36V |
| Consumption (without hard disk) | MAX. 70W (Heater 22W) |
| Working temperature | -40 °C – 65 °C |
| Working humidity | Humidity 90% or less |
| Protection Level | IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Dimensions (W×D×H) | Φ390(mm)×361.3(mm) |
| Weight | 20kg (approx.) |
Hikvision DS 2DP0818Z D Panoramik PTZ Kamera Pdf Dosyası727.14 KB
Teknik Kısa
Depolama : Var
