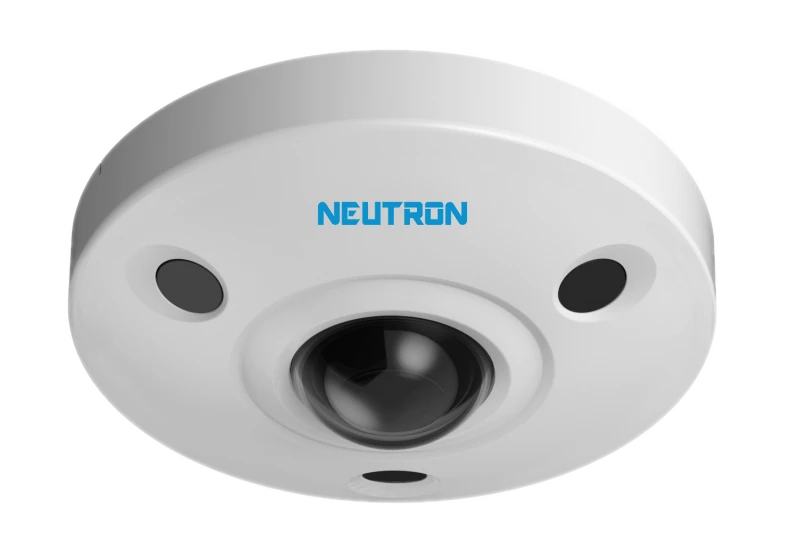

Neutron IPC EBW8600 Panoramik Ip Kamera
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/1.8” 6Megapixel progressive scan CMOS | |
| Effective Pixels | 3072(H)x2048(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 10m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC/ HLC/ DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 1.55mm | |
| Max Aperture | F2.0 | |
| Focus Control | Manual | |
| Angle of View | 185°/185°/185° | |
| Lens Type | Manual | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264H/H.264/MJPEG/JPEG | |
| Resolution | 6M(3072×2048)/3M(2048×1536)/1080P(1920×1080) | |
| Frame Rate | Main Stream | 6M/(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | 40Kbps~8192Kbps | |
| De-wrap Mode | Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures | |
| Audio | ||
| Compression | G.711a/G.711u/PCM | |
| Interface | 1/1 channel In/Out(Built in Mic) | |
| Network | ||
| Ethernet | RJ-45 (100/1000Base-T) | |
| Wi-Fi | N/A | |
| Protocol | ||
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, up to 64GB | |
| RS485 | N/A | |
| Alarm | 2/1 channel In/Out | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3at) | |
| Power Consumption | <11W | |
| Working Environment | -30°C~+60°C, Less than 95%RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ150mm x 50.7mm | |
| Weight | 0.58kg(0.86kg with packaging ) | |
Teknik Kısa
Çözünürlük : 6MP
