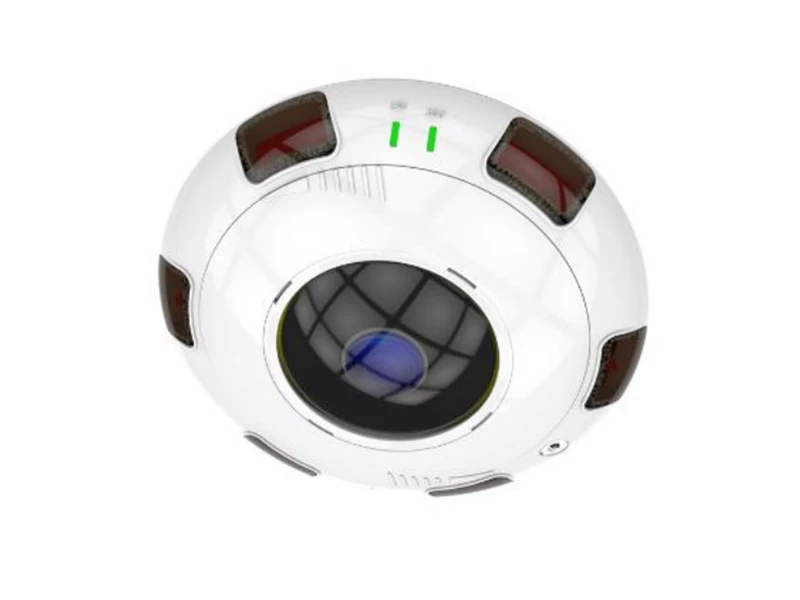

Sunell IPV56/60HDR Panoramik IP Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Min. illumination | Color :0.01Lux@(F1.2,AGC ON);B/W: 0 Lux@(IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | 1/5s-1/50000s |
| Auto Iris | N/A |
| Wide Dynamic Range | dWDR |
| Digital Noise Reduction | 2D/3D |
| Lens | 1.6mm |
| FOV | 360 degrees |
| IR LED | 6pcs |
| IR Range | Up to 10m |
| IMAGE | |
| Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
| Bit Rate (CBR/VBR) | 500kb-12000kb |
| Audio Compression | G.711 ,RAW_PCM |
| Max.Resolution | 3072*2048@15fps |
| Stream | Stream1 3072*2048@15fps,1920*1920/1440*1440/1920*1080@20fps |
| Stream2 1280*1280/720*720/D1@15fps/25fps/30fps | |
| Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
| De-warping | 1F+3/5/7,180 degrees panorama |
| HLC | Yes |
| 9/16 Corridor Mode | N/A |
| DIS | N/A |
| ROI | N/A |
| Defog | N/A |
| NETWORK | |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast |
| Alarm Trigger | Motion detection,Network disconnect,Disk alarm,I/O alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware Watch Dog |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
| System Compatibility | Onvif |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Microphone | Yes（Built-in） |
| Audio I/O | 1ch Audio In,1ch Audio Out |
| Alarm I/O | 1ch Alarm In,1ch Alarm Out |
| RS485 | N/A |
| BNC Output | N/A |
| Reset Button | Yes |
| Edge Storage | Micro SD/SDHC/SDXC slot ,Max 64GB |
| GENERAL | |
| Power Supply | AC24V/DC12V/POE |
| Power Consumption | 5W IR LED OFF;8W IR LED ON |
| OperatingTemperature | Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F) | |
| Operating Humidity | 0% - 90% RH |
| Ingress Protection | IP67 |
| Approvals | CE / FCC |
| Product Dimensions | φ160*46.8 |
| Product Weight | 700g |
Teknik Kısa
Depolama : Var
Çözünürlük : 6MP
