Açıklama

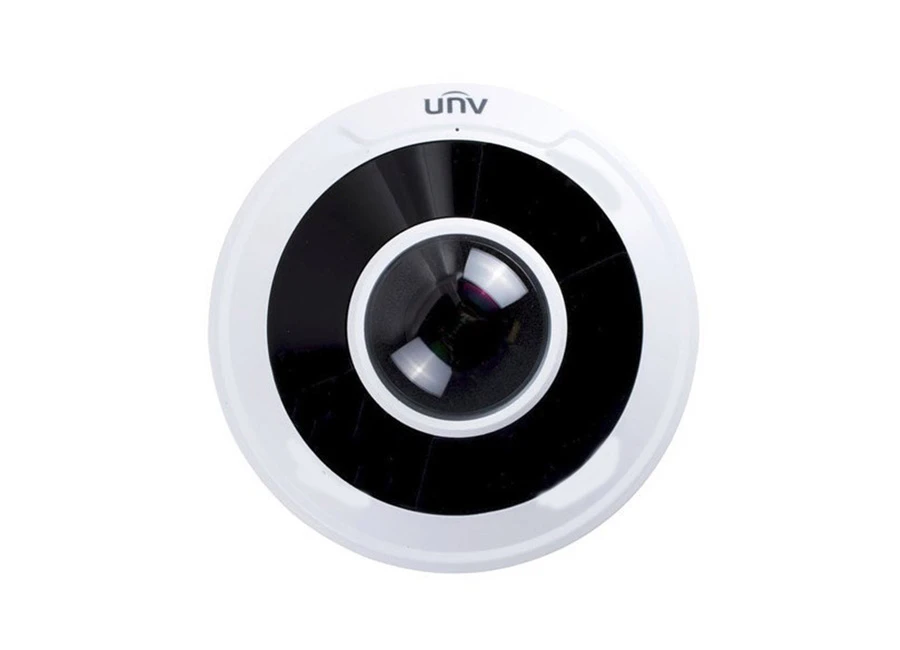

Uniview IPC814SR DVPF16 IP HD Panoramik Kamera

Çözünürlük : 4MP

Camera
Image sensor	1/3", 4 megapixel, progressive scan, CMOS
Aperture	F1.6
Shutter	Auto/Manual，shutter time：1/6 s ~1/100000 s
Minimum Illumination	Colour: 0.02 Lux (F1.6, AGC ON)
	0 Lux with IR
S/N Ratio	>55dB
Day / Night	IR-cut filter for day & night function
WDR	120 dB
Video
Max. Resolution	2592×1520
Video Compression	H.265, H.264, MJPEG
Frame Rate	4MP (2560×1440): Max.25 fps
ROI(Region of Interest)	Supported
Maximum Streams	Singlestream (1 panoramic view)
Evaluative Metering	Supported
OSD	Up to 8 OSD
Privacy Mask	Supported
Storage
Edge Storage	Micro SD, up to 128GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF, API
Interface
Audio I/O	Audio interface
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
	3 built-in omnidirectional microphone
Alarm I/O	1.Oca
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Network	10M/100M Base-TX Auto-adaptive Ethernet
Reset	1 Reset Button
General
Power	DC12V±25%,PoE(IEEE 802.3af)
Power	Power consumption: Max. 11 W
Dimensions (Ø x H)	Φ125x 43.7 mm (Φ4.9” x 1.7”)
Weight	0.39kg(0.86lb)
Working Environment	-40°C ~60°C (-40°F ~ 140°F), Humidity ≤ 95% RH
Vandal Resistant	IK10
Ingress Protection	IP66
