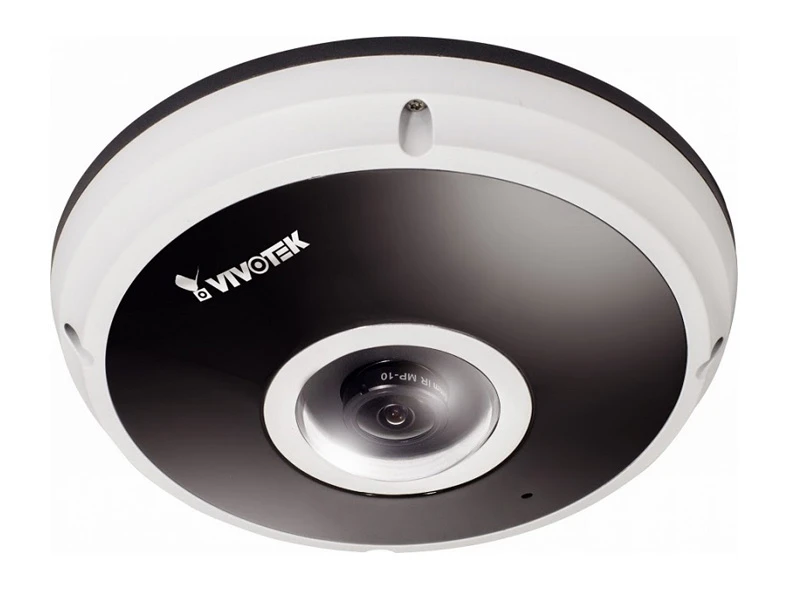

Vivotek FE8181V Panoramik Ip Kamera
Özellikler
- 5-Megapixel CMOS Sensor
- 30fps @ 1080p FullHD
- f 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- EN50155 Compliance for Professional Mobile Surveillance
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- ePTZ for Data Efficiency
- Built-in 802.3at Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Pixel Calculator for Image Clarity Measurement
- Support Local Dewarping
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.5" Progressive CMOS sensor in 2560 x 1920 resolution |
| Maximum Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.5 mm |
| Aperture | 2.8 |
| Field of View | 180° (horizontal) |
| 180° (vertical) | |
| 180° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.6 Lux @ F2.8 ( Color ) |
| 0.01 Lux @ F2.8 ( B/W ) | |
| 0 Lux @ IR LED ON | |
| Preset Locations | 20 |
| Pan / Tilt / Zoom | ePTZ |
| 12x digital zoom ( 12x on IE plug-in ) | |
| IR Illuminators | Built-in IR illuminators, effective up to 10 meters |
| IR LED*6 | |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MPEG-4 & MJPEG |
| Maximum Frame Rate | In all compression modes: |
| 15 fps at 1920x1920 | |
| 30 fps at 1920x1080 | |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 50 dB |
| Dynamic Range | Above 60 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, pixel calculator, 3D-Noise reduction |
| Audio | |
| Audio Capability | Audio input / output ( full duplex ) |
| Compression | AAC |
| G.711 | |
| G.726 | |
| Interface | Built-in microphone |
| External microphone input | |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| Power input | 12V DC |
| IEEE 802.3at PoE Class 4 | |
| Power consumption | Max. 22 W ( DC 12V ) |
| Max. 23 W ( PoE+ ) | |
| Dimensions | Ø: 160 mm x 51 mm |
| Weight | Net: 794 g |
| Casing | Vandal-proof IK10-rated metal housing |
| Weather-proof IP66-rated housing | |
| Safety Certifications | CE, C-Tick, EN50155, FCC Class A, LVD, UL, VCCI |
| Operating Temperature | Starting Temperature: -25°C ~ 50°C ( -13°F ~ 122°F ) |
| Working Temperature: -40°C ~ 50°C ( -40°F ~ 122°F ) | |
| Warranty | 36 Months |
| System Requirements | |
| Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
| Browser | Mozilla Firefox 7~10 ( Streaming only ) |
| Internet Explorer 7.x ,8.x, 9.x, 10.x | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
Video
Teknik Kısa
Çözünürlük : 5MP
Irled : Var
Depolama : Var
