Ürün arama
Açıklama

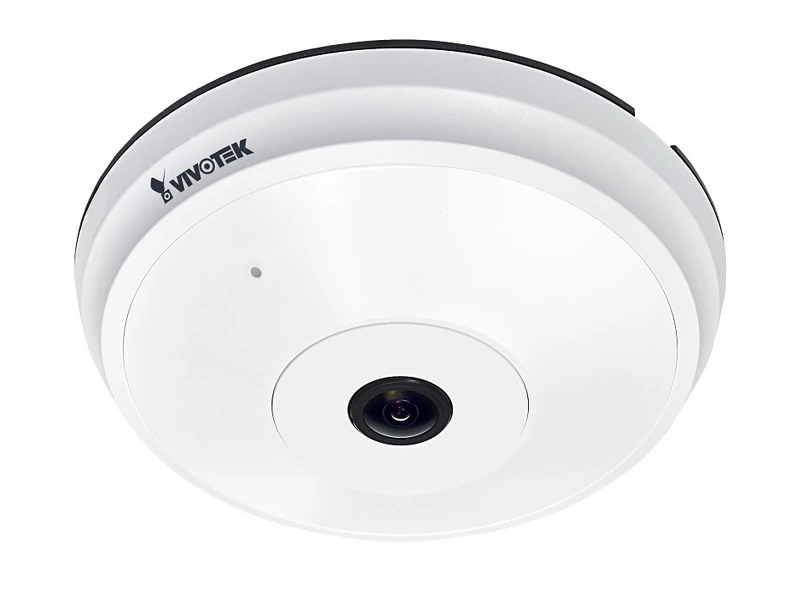

Vivotek FE8191 Panoramik Ip Kamera
Özellikler
- 12-Megapixel CMOS Sensor
- 12 fps @ 2944x2944
- 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264 and MJPEG Compression
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- 3D Noise Reduction for Low-light Conditions
- ePTZ for Data Efficiency
- 802.3at PoE Compliant
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Pixel Calculator for Image Clarity Measurement
- Support Local Dewarping
- Panoramic PTZ Function with Speed Dome Camera for monitoring detailed regional view
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/2.3" Progressive CMOS in 4072x3046 |
| Maximum Resolution | 2944x2944 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.5 mm |
| Aperture | F2.8 |
| Field of View | 180° (horizontal) |
| 180° (vertical) | |
| 180° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/8,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.75 Lux, 30 IRE (Color) |
| 0.01 Lux, 30 IRE (BW) | |
| Preset Locations | 20 |
| Pan/tilt/zoom Functionalities | ePTZ: 12x digital zoom |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | 12fps @ 2944x2944 |
| Maximum Streams | 4 Simultaneous Streams |
| S/N Ratio | 56dB |
| Dynamic Range | 60dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-Noise reduction, 2D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks |
| Audio | |
| Audio Capability | Audio input/output (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | Built-in Microphone |
| External Microphone input | |
| External Line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | 5 window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| Audio input *1 | |
| Audio output *1 | |
| DC 12V Power input | |
| Digital input *1 | |
| Digital ouput *1 | |
| LED Indicator | System power and status indicator |
| Power Input | 12V DC |
| IEEE 802.3at PoE Class 4 | |
| Power Consumption | DC12V 11.2W / POE 12.3W |
| Dimensions | Ø: 160 x 39.4 mm |
| Weight | 597 g |
| Safety Certifications | CE, LVD, VCCI, C-Tick, UL, FCC Class B |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000/8 |
| Web Browser | Mozilla Firefox: 7 or above (streaming only) |
| Chrome: 17 or above (streaming only) | |
| Safari: 5.1.4 or above (streaming only) | |
| Internet Explorer 7.x, 8.x, 9.x, 10, 11 | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel, VAST CMS (Trail for 60 days), Calibration Tool |
| Others | Quick installation guide, warranty card, alignment sticker, waterproof connector, desiccant bag, RJ45 coupler, software CD |
Video
Teknik Kısa
Çözünürlük : 12MP
Depolama : Var
