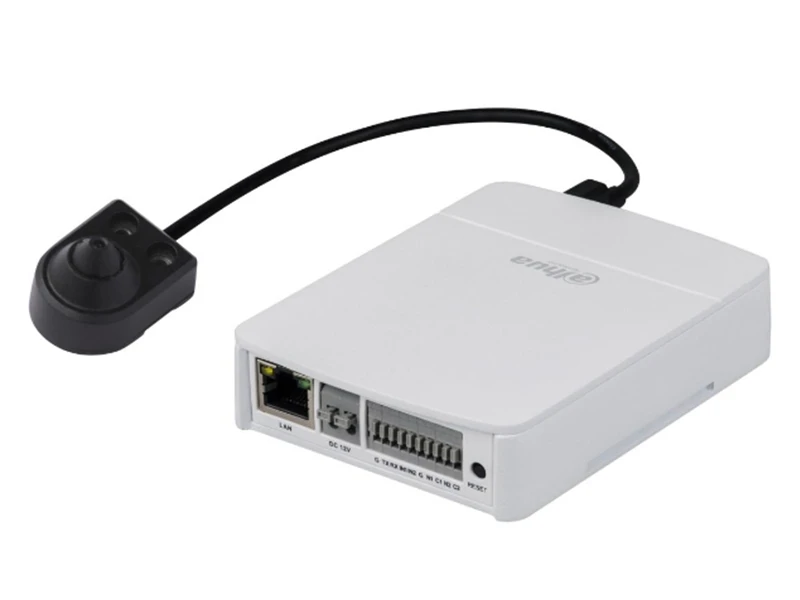

Dahua IPC HUM8101 Pinhole IP Kamera
Özellikler
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.8” 2Megapixel progressive scan CMOS |
| Effective Pixels : 1920(H)x1080(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual, 1/3(4)-1/100000s |
| Min. Illumination : 0. 01Lux/F2.0 (Color), 0Lux/F2.0(IR on) |
| S/N Ratio : More than 50dB |
| Video Output : N/A |
| Camera Features |
| Max. IR LEDs Length : 50m |
| Day/Night : Auto(ICR)/Color/B/W |
| Backlight Compensation : BLC / HLC / DWDR |
| White Balance : Auto/Sunny/Night/Outdoor/Customized |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 2.8mm(3.6mm,6mm optional) |
| Max Aperture : F2.0(F2.0/F2.0) |
| Focus Control : Manual |
| Angle of View : 110°(83°/56°) |
| Lens Type : Fixed lens |
| Mount Type : Board-in Type |
| Video |
| Compression : H.264/ MJPEG |
| Resolution : 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Frame Rate : Main Stream : 1080P/720P(1 - 25/30fps) |
| Sub Stream : D1/CIF(1 - 25/30fps) |
| Third Stream : 720P(1 - 13/4fps) |
| Bit Rate : H.264: 32K - 10Mbps |
| Corridor Mode : Support |
| Audio |
| Compression : G.711a/ G.711u/ AAC(only for -AS) |
| Interface : Built-in Mic(only for -AS) |
| Smart Function(Optional) |
| Smart detection : Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility : ONVIF,PSIA,CGI |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD Max 128GB(only for -AS) |
| RS485 : N/A |
| Alarm : N/A |
| PIR Sensor Range : N/A |
| General |
| Power Supply : DC12V, PoE (802.3af) |
| Power Consumption : Max 3.7W |
| Working Environment : -30°C-+60°C, Less than 95% RH |
| Ingress Protection : IP67 |
| Vandal Resistance : N/A |
| Dimensions : Φ106mm×94mm |
| Weight : 0.47kg(0.65kg with package) |
Teknik Kısa
Depolama : Var
Çözünürlük : 1.3MP
