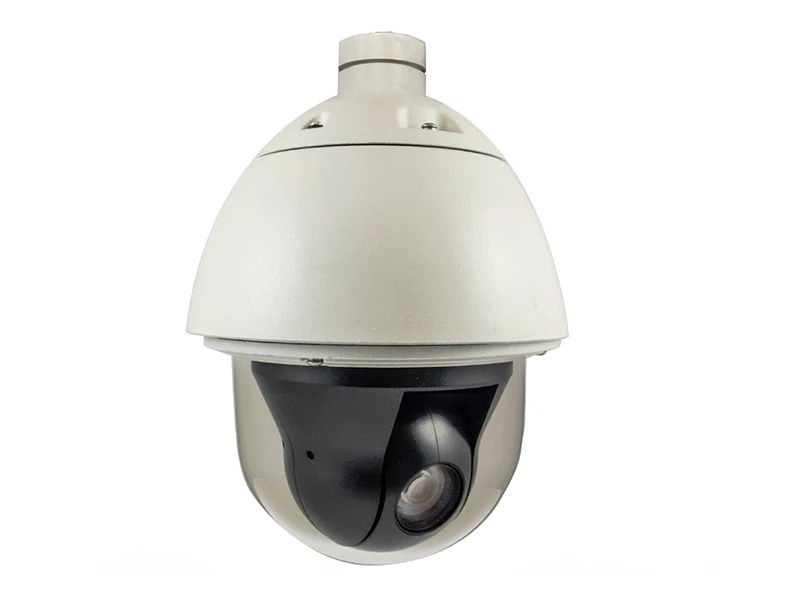

Acti B920 IP HD Speed Dome Kamera
Teknik Özellikler
| Product Type | PTZ |
| Maximum Resolution | 5MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Superior Low Light Sensitivity | Yes |
| Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux at F1.6 |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Lens | Zoom, f4.5-135mm / F1.6-4.4, DC iris, Auto focus |
| Zoom Ratio | 30x optical |
| Panning and Tilting Range | Pan: 0°-360° (with Auto-flip); Tilt: -20°-200° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 59.8°-2.34° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944 |
| 15 fps at 2048 x 1536 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 800 x 600 | |
| 30 fps at 640 x 480 | |
| 15 fps at 320 x 240 | |
| Horizontal Resolution (TV lines) | 1500 TVL |
| Multi-Streaming | Dual streams |
| Wide Dynamic Range | Basic WDR (74 dB) |
| Digital Noise Reduction | DNR |
| S/N Ratio | 52 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 2/2 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | AC 24V; High PoE |
| Environmental Casing | Weatherproof (IP68); Vandal proof (IK10) |
| Bundled Accessories | No |
| Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box |
| Software Based Analytics | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, |
| (require PC based Smart Search Tool, IVS Server or ALPR Server) | Missing object, Unattended object, Crowd detection, Forbidden direction, |
| Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection | |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Heater | Yes |
| Fan | Yes |
| Starting Temperature | -50°C ~ 50°C |
| (-58°F ~ 122°F) within 30 minutes with AC 24V | |
| Operating Temperature | -50°C ~ 50°C |
| (-58°F ~ 122°F) with AC 24V | |
| Approvals | CE, FCC, IP68, NEMA 6P, IK10 |
| Warranty | 3 Years* |
| (3 Months in continuous motion) |
Teknik Kısa
Çözünürlük : 5MP
Depolama : Var
