| Product Type |

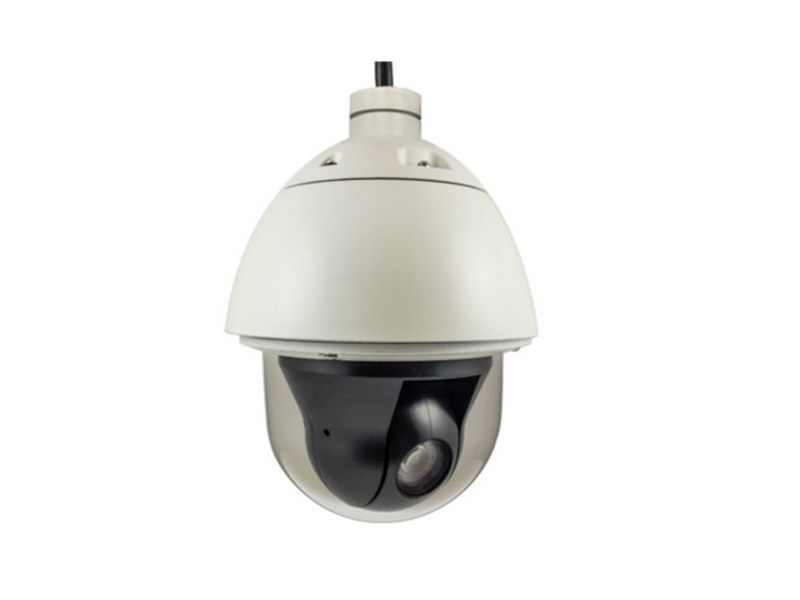

Speed Dome |
| Maximum Resolution |
3MP |
| Application Environment |
Outdoor |
| Image Sensor |
Progressive Scan CMOS |
| Day / Night |
Yes |
| Superior Low Light Sensitivity |
Yes |
| Minimum Illumination |
Color: 0.1 lux, B/W: 0 lux (IR LED on) at F1.6 |
| Mechanical IR Cut Filter |
Yes |
| IR LED |
Yes, Adaptive IR (Object & Zoom Adaptive IR) |
| IR Working Distance |
60-100m |
| Lens |
Zoom, f4.7-94mm / F1.6-3.5, DC iris, Auto focus |
| Zoom Ratio |
20x optical |
| Panning and Tilting Range |
Pan: 0°-360° endless; |
| Tilt: -20°-200° |
| Lens Mount |
Board mount |
| Horizontal Viewing Angle |
60.8°-3.4° |
| Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution |
30 fps at 2048 x 1536 |
| 60 fps at 1920 x 1080 |
| 60 fps at 1280 x 720 |
| 60 fps at 640 x 480 |
| 60 fps at 320 x 240 |
| Horizontal Resolution (TV lines) |
1800 TVL |
| Multi-Streaming |
Triple streams |
| Wide Dynamic Range |
Advanced WDR (80 dB) |
| Digital Noise Reduction |
2D+3D DNR |
| S/N Ratio |
56 dB |
| Audio |
2-way (Line-in, Line-out) |
| Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P |
| Network Connector |
RJ-45 |
| Digital Input/Output |
4/2 |
| Local Storage |
MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source |
AC 24V; High PoE |
| Environmental Casing |
Weatherproof (IP66); Vandal proof metal casing (IK10) |
| Bundled Accessories |
Power adapter |
| Mount Type |
Pendant, Wall, Corner, Pole |
| Other Value-Added Features |
Defogging |
| Software Based Analytics |
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, |
| (require PC based Smart Search Tool, IVS Server or ALPR Server) |
Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, |
| Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
| Client PC Operating System |
Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser |
IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant |
Yes |
| Heater |
Yes |
| Fan |
Yes |
| Starting Temperature |
-40°C ~ 50°C |
| (-40°F ~ 122°F) within 30 minutes |
| Operating Temperature |
-40°C ~ 50°C |
| (-40°F ~ 122°F) |
| Approvals |
CE, FCC, IP66, NEMA 4X, IK10 (metal casing) |
| Warranty |
3 Years* |
| (1 Year in continuous motion) |
