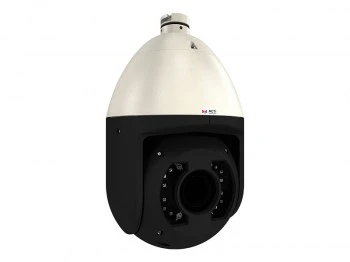

Acti I940 IP HD Speed Dome Kamera
Teknik Özellikler
| Product Type | Speed Dome |
| Maximum Resolution | 12MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Superior Low Light Sensitivity | Yes |
| Minimum Illumination | Color: 0.1 lux, B/W: 0 lux (IR LED on) at F1.6 |
| Mechanical IR Cut Filter | Yes |
| IR LED | Yes, Adaptive IR (Object & Zoom Adaptive IR) |
| IR Working Distance | 150m |
| Lens | Zoom, f4.5-135mm / F1.6-4.4, DC iris, Auto focus |
| Zoom Ratio | 30x optical |
| Panning and Tilting Range | Pan: 0°-360° endless; |
| Tilt: -20°-200° | |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 59.8°-2.34° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 4000 x 3000 |
| 30 fps at 3840 x 2160 | |
| 30 fps at 2592 x 1944 | |
| 30 fps at 2048 x 1536 | |
| 60 fps at 1920 x 1080 | |
| 60 fps at 1280 x 720 | |
| 60 fps at 640 x 480 | |
| 60 fps at 320 x 240 | |
| Horizontal Resolution (TV lines) | 2250 TVL |
| Multi-Streaming | Triple streams |
| Wide Dynamic Range | Advanced WDR (80 dB) |
| Digital Noise Reduction | 2D+3D DNR |
| Digital Image Stabilizer | Digital Image Stabilizer |
| S/N Ratio | 56 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 4/2 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | AC 24V; High PoE |
| Environmental Casing | Weatherproof (IP66); Vandal proof metal casing (IK10) |
| Bundled Accessories | Power adapter |
| Mount Type | Pendant, Wall, Corner, Pole |
| Other Value-Added Features | Defogging |
| Built-in Analytics | Motion Detection, Tamper, Face Detection, Digital Image Stabilizer, Object Counting, People Counting, |
| PTZ Auto Tracking, Digital Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object, | |
| Automatic License Plate Recognition | |
| (some of the algorithms may not be available in the first release, can be upgraded for free later) | |
| Software Based Analytics | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, |
| (require PC based Smart Search Tool, IVS Server or ALPR Server) | Exit area, Appear in area, Missing object, Unattended object, Crowd detection, |
| Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection | |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Heater | Yes |
| Fan | Yes |
| Starting Temperature | -40°C ~ 50°C |
| (-40°F ~ 122°F) within 30 minutes | |
| Operating Temperature | -40°C ~ 50°C |
| (-40°F ~ 122°F) | |
| Approvals | CE, FCC, IP66, NEMA 4X, IK10 (metal casing) |
| Warranty | 3 Years* |
| (1 Year in continuous motion) |
Teknik Kısa
Çözünürlük : 12MP
Depolama : Var
Ses : Var
Irled : Var
