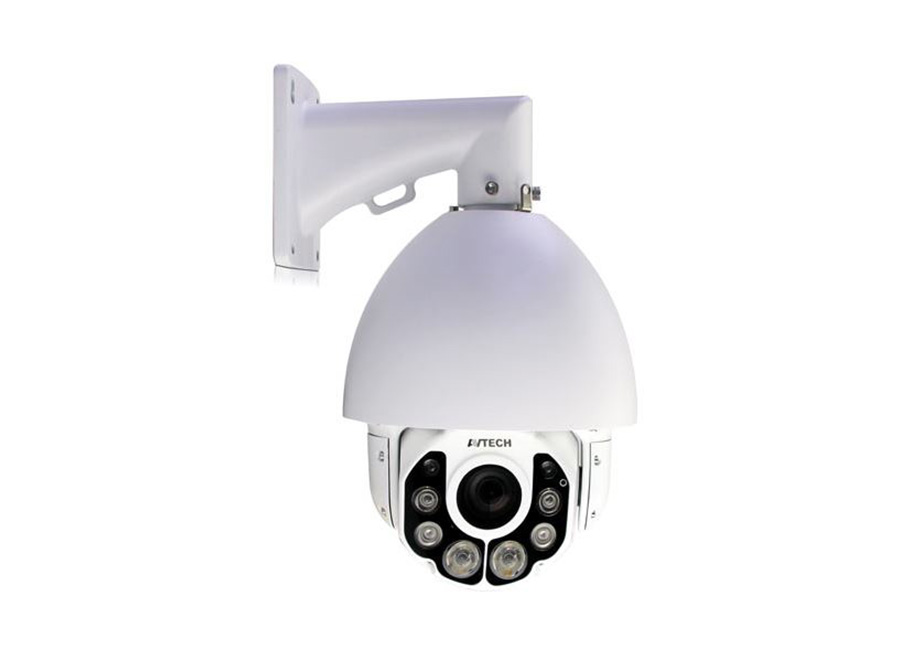

Avtech AVM5937 IP Speed Dome Kamera

Zoom lens of f4.5 ~ 135mm with 30x optical zoom and auto focus
PTZ control for seamless monitoring
POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
ONVIF standard supported to simplify system integration
WDR to increase image recognizability in overexposure and dark areas
IR effective range up to 200 meters
IP66 for outdoor application
Line in / out jacks available for audio transmission
MicroSD card support (up to 64GB) for video storage

Çözünürlük : 5MP

Depolama : Var

Compression Format	H.265 / H.264 / MJPEG
Video Resolution	2592x1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
Frame Rate	30/25 fps
Multiple Video Streaming	4 (H.265 / H.264 / MJPEG)
Bitrate Control	SVBR control (VBR + Max bitrate)
Image Sensor	1/2.9" SONY CMOS image sensor
Min Illumination	0.1 Lux / F1.6 (Wide)~F4.4 (Tele), 0 Lux (IR LED ON)
Shutter Speed	1 / 60 (1/50) to 1 / 100,000 sec.
S/N Ratio	More than 48dB (AGC off)
Lens	f4.5 ~ 135mm / F1.6 (Wide) ~ 4.4(Tele), auto focus
Viewing Angle	1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal)
Viewing Angle	30X: 2.5° (Horizontal) / 1.4° (Vertical) / 2.8° (Diagonal)
IR LED	8 Units
IR Effective Distance	Default: Up to 200 meters / IR Turbo mode: More than 200 meters
IR Shift	YES
Smart Light Control	YES
White Balance	Auto / 2500K / 3200K / 4200K / 5800K / 9500K
AGC	YES
IRIS Mode	YES
Sharpness	YES
WDR	YES
ONVIF Compatible	YES (Profile S)
POE	YES (802.3at)
LAN Speed	10/100 Based-T Ethernet
External Alarm I/O	YES (1 input / 1 output)
RAM	20MB
MicroSD Card Slot	YES (up to 64GB)
RS-485	YES
Weather-proof	IP66
Operating Temperature	-25℃ ~ 50℃
Operating Humidity	90% or less relative humidity
Power Source (±10%)	AC 24V / DC19V
Power Consumption (±10%)	PoE & PoN: 20.27W; DC adapter: 19.95W
Net Weight (kg)	6.Eyl
