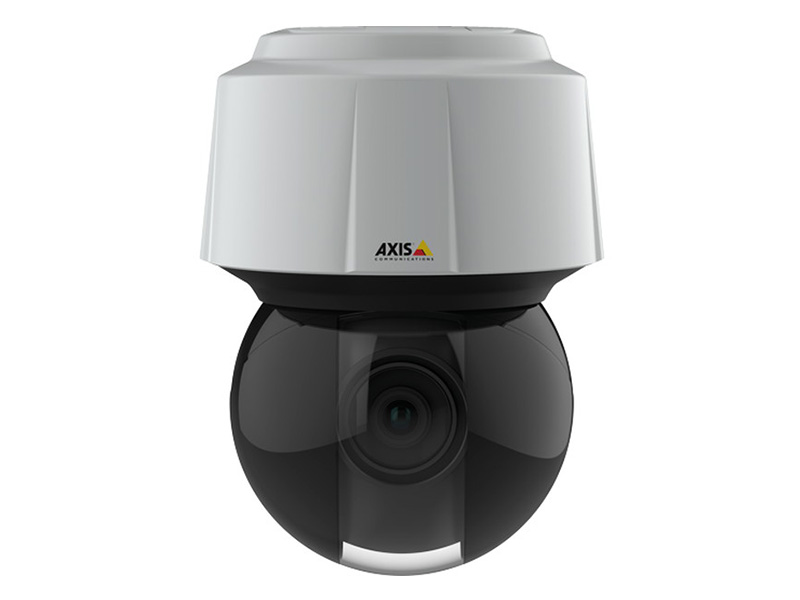

Axis Q6115 E IP HD Speed Dome Kamera

Özellikler

1/3” Progressive Scan CMOS
1920x1080p (HDTV 1080p) to 320x180
Color: 0.2 lux at 30 IRE F1.4 B/W: 0.02 lux at 30 IRE F1.4 Color: 0.3 lux at 50 IRE F1.4 B/W: 0.04 lux at 50 IRE F1.4
Pan: 360° endless, 0.05°–700°/s Tilt: +20 to -90°, 0.05°–500°/s
Zoom: 30x Optical, 12x Digital, Total 360x zoom
Nadir flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°, Adjustable zoom speed, Speed Dry
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG

Teknik Özellikler

Video Input

Camera Mechanical Design : Pan / tilt / zoom

Camera Type : Network surveillance camera

Color or B&W : Color

Connectivity Technology : Wired

Day & Night Functionality : Yes

Digital Video Capture Resolution : 1920 x 1080 , 240 x 135

Digital Video Format : H.264 , MJPEG , MPEG-4

Digital Zoom : 12

Features : 256 preset positions , 3D Privacy Mask Function , Auto tracking , AXIS Video Hosting System (AVHS) , Backlight compensation , Brightness control , Color control , Defogger , E-mail alerts , Electronic Image Stabilizer (EIS) , Infrared cut filter , Live Streaming , Password protection , Sharpness control , Shock detection , Temperature sensor , Variable Bitrate (VBR) , Video Motion Detection Technology , White balance , Wide Dynamic Range (WDR)

Frame Rate : 60 frames per second

Max Digital Video Resolution : 1920 x 1080

Max Panning Speed (degree/sec) : 700

Max Tilting Speed (degree/sec) : 500

Optical Zoom : 30

Panning Range (degree) : 360

Shutter Speed (Max) : 1/30000 sec

Tilting Range (degree) : -90 to +20

Video Modes : 720p

Optical Sensor

Optical Sensor Type : CMOS

Sensor Size : 1/3"

Sensor Size (metric) : 8.5 mm ( 1/3" )

Networking

Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SFTP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP

Environmental Parameters

Humidity Range Operating : 10 - 100%

Max Operating Temperature : 122 °F

Min Operating Temperature : -58 °F

Header

Brand : Axis

Compatibility : PC

Manufacturer : Axis Communications

Model : Q6115-E PTZ Dome Network Camera 60Hz

Packaged Quantity : 1

Product Line : AXIS

Lens System

Angular Field of View (H, max, degree) : 63.4

Angular Field of View (H, min, degree) : 2.3

Angular Field of View (V, max, degree) : 37.3

Angular Field of View (V, min, degree) : 1.3

Focus Adjustment : Automatic

Lens Aperture : F/1.4-4.6

Max Focal Length : 132 mm

Min Focal Length : 4.4 mm

Miscellaneous

Color Category : Black , White

Compliant Standards : AS/NZS CISPR22:2004 Class A , C-Tick , CB , cUL , EN 50121-4 , EN 55022 Class A , EN 55024 , EN 60950-1 , EN 60950-22 , EN 61000-3-2 , EN 61000-3-3, EN 61000-6-1 , EN 61000-6-2 , FCC , FCC Part 15 B , GS , ICES-003 Class A , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60529 IP66 , IEC 60950-1 , IEC 60950-22 , IEC 62236-4 , IEC 62262 IK08 , IP66 , ISO 4892-2 , KCC , KCC KN22 , KN24 , NEMA Type 4X , UL , UL 60950-1 , UL, 60950-22 , UL-AR , VCCI , VCCI Class A

Included Accessories : AXIS High PoE Midspan (1 port) , IP66-rated RJ45 connector kit

Power Device

Form Factor : External

Nominal Voltage : AC 120/230 V

Power Consumption Operational : 51 Watt

Type : Power injector

Service

Support Details Full Contract Period : 3 years

Support Details Type : Limited warranty

Software

Type : Drivers & Utilities
