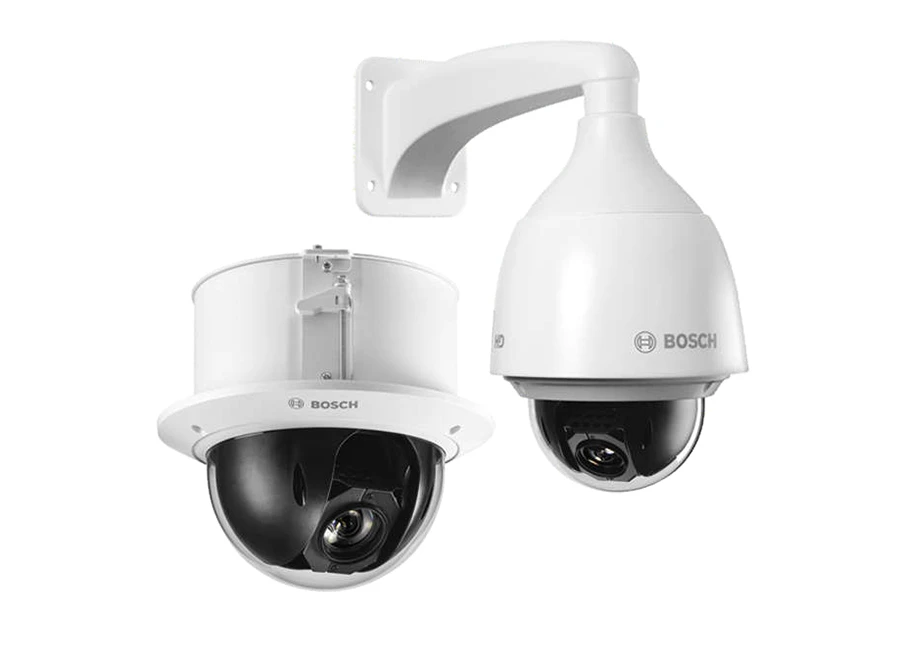

Bosch AUTODOME IP 5000 HD 1080P IP HD Speed Dome Kamera

Özellikler

Choice of 1080p25/30 HD resolution, 30x optical zoom with Bosch’s imaging platform specially designed and tuned for accurate color reproduction in scenes with varying lighting levels from day to night
Identification of people up to 180 m(590 ft) without loss of any details
High-speed PTZ control for monitoring people and vehicles in large indoor/outdoor scenes
Exceptional low bit rates in static scenes to save the storage cost by up to 50% compared to any equivalent dome in the market
ONVIF Profile S and third party software support for easy integration with VMS

Teknik Özellikler

Imager	1/2.8" progressive scan CMOS
Total sensor pixels	2.48M pixels
Effective pixels	1080p: 1984 (H) x 1105 (V) (approximately 2.43M pixels)720p: 1344 (H) x 745 (V)
Lens Focal Length	30x Zoom4.3 mm–129 mm (F 1.6 - F 5.0)
Field of View (FOV)	2.3°–65°
Focus	Automatic with manual override
Iris	Automatic
Digital Zoom	16x
Sensitivity / Minimum Illumination (typical)	30 IRE , 50 IRE
SensUp off	0.22 lux , 0.35 lux
SensUp on (1/7.5)	0.04 lux , 0.08 lux
SensUp off	0.044 lux , 0.07 lux
SensUp on (1/7.5)	0.008 lux , 0.016 lux
Electronic Shutter Speed	1/25 sec to 1/15,000 sec (12 steps)
WDR	76dB (DWDR)
Signal-to-noise Ratio (SNR)	>50dB (AGC off)
Noise Reduction	Intelligent Dynamic Noise Reduction
Backlight Compensation (BLC)	On/Off
Intelligent Defog	Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off)
White Balance	Standard Auto, Sodium Vapor Auto, Basic Auto, Manual, Hold, Dominant Color Auto
Day/Night	Mechanical switchable IR filter (Auto/On/off) Monochrome
Pan/Tilt Modes	Normal: 0.1°/s - 120°/sTurbo: Pan: 0.1°/s - 300°/s; Tilt: 0.1°/s - 200°/s
Pre-position Speed	Pan: 300°/sTilt: 200°/s
Pan Range	360° continuous
Tilt Range	° to ±90°
Preset Accuracy	± 0.2° typ.
Presets	256
Tours	Two (2) types of tours:• Recorded tours – two (2), maximum total duration 15 minutes (depending on the amount of commands sent during recording) • Preset tour – one (1) consecutive, one (1) custom
Input Voltage	24 VAC and POE+
Power Consumption	24 VAC: 14W / 24W (Heater on)POE+ : 13W (Heater not supported)
Video compression	H.264 (ISO/IEC 14496-10)M‑JPEG
Streaming Capability	Quad Stream (2x H.264, 1x MJPEG, 1x i-Frame only)
Frame Rate	1080P (1 - 25/30fps)720P (1 - 25/30fps)
When the option in field “Property” for Stream 1 is:	The available options in field “Property” for Stream 2 are:
H.264 MP SD	- H.264 MP SD
H.264 MP 720p fixed	- H.264 MP SD - H.264 MP 720p fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 1280x960 (cropped) - H.264 MP 640x480
H.264 MP 1080p fixed	- Copy Stream 1 - H.264 MP SD - H.264 MP 720p8/10 fixed - H.264 MP 1080p4/5 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480
H.264 MP 720p50/60 fixed	- Copy Stream 1 - H.264 MP SD - H.264 MP 720p6/7 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480
Non-recording profiles	Two (2) streams, I-frame only Options are:- HD Image Optimized- HD Balanced- HD Bit Rate Optimized- SD Image Optimized- SD Balanced- SD Bit Rate Optimized- DSL Optimized- 3G Optimized
