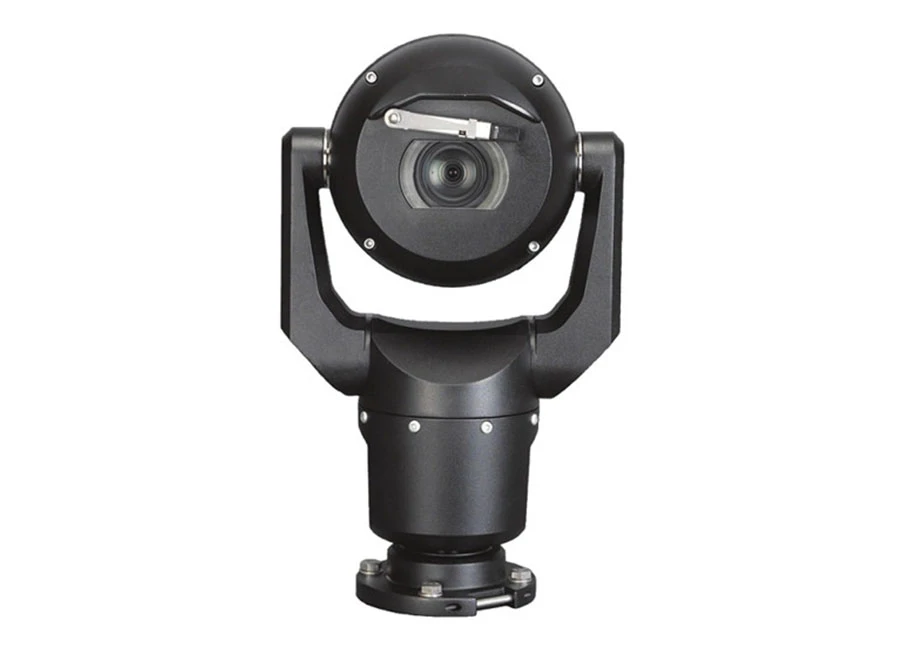

Bosch MIC 7230 PG4 IP PTZ Kamera

Özellikler

Exceptional strength and ruggedness for any outdoor, industrial, or commercial surveillance application
High Dynamic Range (HDR) to see details in bright and dark areas simultaneously
Simple installation with new hinged DCA mounting accessory and new cable design
ONVIF conformant; provides interoperability with other conformant systems

Teknik Özellikler

SKU	MIC-7230-PG4
Manufacturer	Bosch
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	2.1 Megapixel
Lens Type	Motorized Zoom
Lens Size	30X
Mount Type	Pedestal
Compression Method	H.264, M-JPEG, JPEG
Durability	Vandal Resistant, Weather Resistant
Voltage	24vAC
Automatic Gain Control (AGC)	Auto/Manual/Max
Dimensions (W x H)	Without illuminator accessory or sunshield: Upright, Inverted: 217.75 mm x 368.89 mm x 178.33 mm (8.57 in. x 14.52 in. x 7.02 in.), Canted: 217.75 mm x 330.96 mm x 239.68 mm (8.57 in. x 13.03 in. x 9.44 in.), Without illuminator accessory, but with sunshi
Electronic Shutter	1/1 sec to 1/10000 sec (22 steps)
Image Device	1/2.8-type Exmor CMOS sensor
Image Pixels-Effective	1944 x 1224 (2.38 MP)
Minimum Scene Illumination	Day Mode (color): Fixed shutter 1/30, High Sensitivity Mode On: 0.052 lux (30 IRE), 0.166 lux (50 IRE) Fixed shutter 1/30, High Sensitivity Mode Off: 0.26 lux (30 IRE), 0.66 lux (50 IRE) SensUp On (Maximum 1/4), High Sensitivity Mode On: 0.0082 lux (30 IR
Operating Humidity	0-100%
Operating Temperature	Standard Models: -40 °C to +60 °C (-40 °F to +140 °F), Models for extreme low temperature: -60 °C to +50 °C (-76 °F to +122 °F)
Power Consumption	Without illuminator: 40 W maximum, With illuminator: 70 W maximum
Privacy Zone	24 individually configurable privacy masks
Protocols	IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (v1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selftHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CH
S/N Ratio	> 50 dB
Weatherproof	IP67, IP68
Angle of View	2.3° to 65°
Rotation Angle	360°
Back Light Compensation	On/Off
Automatic White Balance	2000 K to 10,000 K, ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Heater & Fan	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
Digital Zoom	Yes
