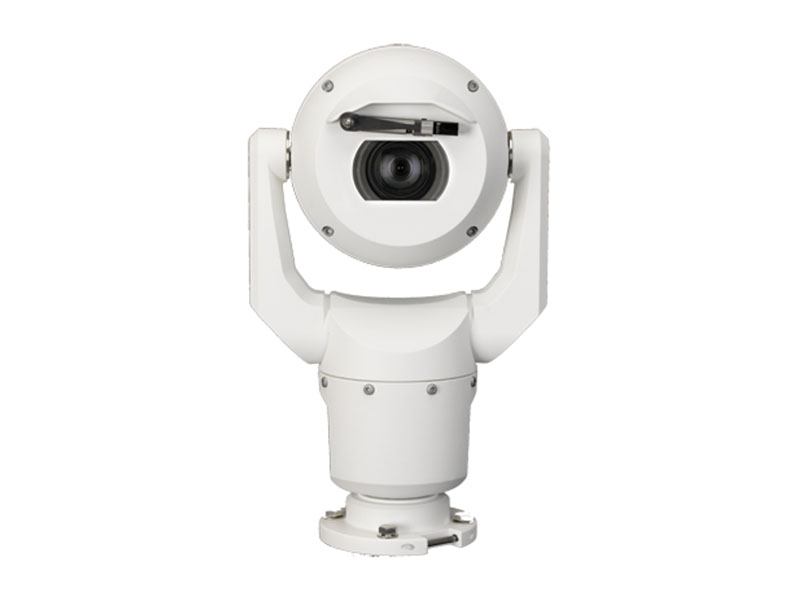

Bosch MIC 7230 W5 IP PTZ Speed Dome Kamera
Özellikler
- Exceptional strength and ruggedness for any outdoor application such as traffic monitoring (bridges, tunnels, or highways), perimeter protection, and city surveillance
- Starlight (1080p25/30) camera technology with excellent low-light sensitivity (color = 0.0077 lux)
- Extended Dynamic Range mode (120 dB) to see details in bright and dark areas simultaneously
Teknik Özellikler
| SKU | MIC-7230-W5 |
| Manufacturer | Bosch |
| Features | Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pedestal |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | AGC, Fixed |
| Dimensions (W x H) | 217.75 mm x 368.89 mm x 178.33 mm (8.57 in. x 14.52 in. x 7.02 in.) |
| Electronic Shutter | 1/1 sec to 1/10000 sec (22 steps) |
| Image Device | 1/2.8-type Exmor R CMOS sensor |
| Image Pixels-Effective | 1945 x 1097 (2.13 MP) |
| Minimum Scene Illumination | Color: 0.0077 lx, Mono: 0.0008 lx |
| Operating Humidity | 0-100% |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| OSD Menu | English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese |
| Power Consumption | 40 W maximum |
| Privacy Zone | 24 individually configurable privacy masks |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | >55 dB |
| Weatherproof | IP68 |
| Angle of View | 2.3° to 65° |
| Rotation Angle | 360° |
| Back Light Compensation | On/off |
| Automatic White Balance | 2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
Bosch MIC 7230 W5 IP PTZ Speed Dome Kamera Pdf Dosyası1.47 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
