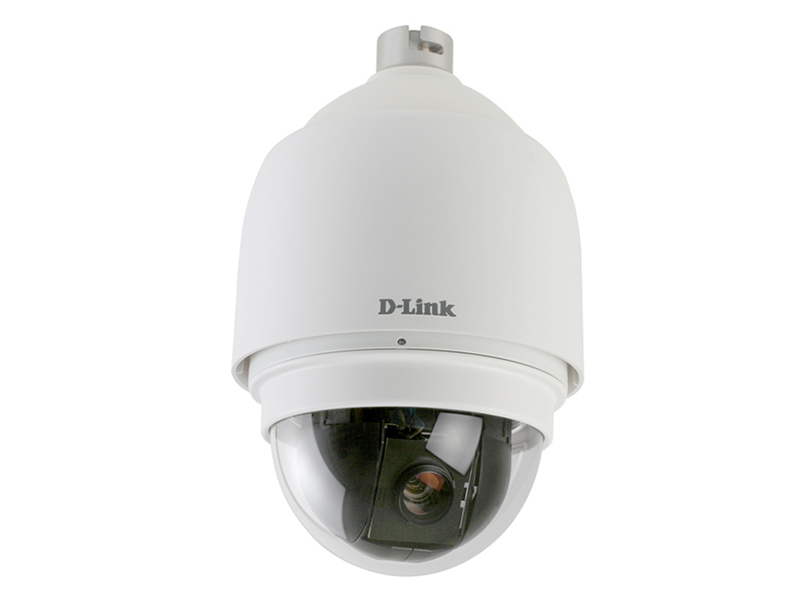

D-Link DCS 6911 IP Speed Dome Kamera

Teknik Özellikler

Camera
Hardware profile camera
1/2, 8-inch 3-megapixel CMOS-sensor Sony Exmor technology with progressive scan
Minimum illumination: 0.1 lux (color), 0.01 lux (B / W)
Built-in ICR-filter
The ratio of the "signal-to-noise"> 50 dB (automatic gain control (AGC) is turned off)
Electronic shutter from 1 to 1/10000 sec.
20x optical zoom, 8x digital zoom
Focal Length: 4.7 to 96 mm
Viewing angle:
   from 64.42 to 4.65 (H)
   from 52.27 to 4.07 (V)
   from 33.4 to 2.33 (measured diagonally)
Hardware profile PTZ
Rotation: 360
Tilt: -10 to 190
Preset points: 256 points
The accuracy of the Pan / Tilt: ± 0,225
The speed pan / tilt: from 5 to 400 per second
Number of independent paths when operating in Sequence: 8
The number of independent paths when operating in Auto Pan: 4
Number of independent paths when operating in Cruise: 8
The speed of rotation is proportional to the tilt and zoom level
Resume operation after power loss
Options Patrol: Preset, Sequence, Auto Pan, Cruise
Automatic coup: the mechanical / digital / off
Support for DSS (Digital Slow Shutter)
Invert Image
Image characteristics
Setting the image size and quality, frame rate and bit rate
The timings and paste text
Customizable windows for motion detection
16 customizable areas of private masks
Setting the white balance, shutter speed, brightness, color saturation, contrast and sharpness
Video Compression
Compression formats H.264/MJPEG
Multicast streaming video in H.264
JPEG for still images
Video Resolution
1920 x 1080 (1080P)
1280 x 720 (720P)
720 x 480 (D1)
800 x 600 (SVGA)
1024 x 768 (XGA)
1280 x 1024 (SXGA)
640 x 480 (VGA)
320 x 240 (CIF)
Audio Support
G.711/G.726
External device interfaces
4 alarm sensor input
2 output sensor alarm
Audio In / Out
Network
Network Protocols
IPv4
TCP / IP
UDP
ICMP
DHCP-Client
NTP-Client (D-Link)
DNS-client
DDNS-Client (D-Link)
SMTP-client
FTP-client
HTTP
PPPoE
UPnP Port Forwarding
RTP / RTSP / RTCP
Filtering IP-addresses
IGMP
IEEE802.1x
QoS
SNMP
ONVIF
Safety
Security administrator account and user groups
Password authentication
System control
System requirements for Web-based interface
Microsoft Windows 8/7/Vista/XP/2000
Web-browser: Internet Explorer, Firefox, Chrome
Event Management
Motion detection
Event notification and download stop-kadrov/videoklipov via SMTP or FTP
Multiple event notifications
Several ways to create backups
Support for multiple servers, HTTP, SMTP and FTP
Remote management
Interface settings, available through the Web-browser
Create stop-kadrov/videoklipov and save to your local hard disk
Support for mobile devices
OS Windows 7/Vista/XP/2000
System Requirements D-ViewCam ™
Operating System: Microsoft Windows 7/Vista/XP
Web-browser: Internet Explorer 7 or above
Protocol: Standard TCP / IP
The software features D-ViewCam ™
Remote management / control of up to 32 cameras
Viewing images on a single screen: up to 32 cameras
Supports all management functions available through the Web-based interface
Recording Options for triggering a sensor or manually
Power Input
24 V AC, 3 A
Max. power consumption
65 W with heater turned on
Operating temperature
-40 To 50 C
Storage temperature
-20 To 70 C
Protection against dust and moisture
Standard IP-66
Anti-vandal protection
Standard IK-10
Humidity
From 20% to 80% (non-condensing)
Weight
2.32 kg with sunshield
Certifications
CE (Class A)
CE LVD (EN60965-1)
FCC (Class A)
ICES-003
C-Tick

pdfD-Link DCS 6911 IP Speed Dome Kamera Pdf Dosyası303.81 KB

Teknik Kısa

Çözünürlük : 3MP
