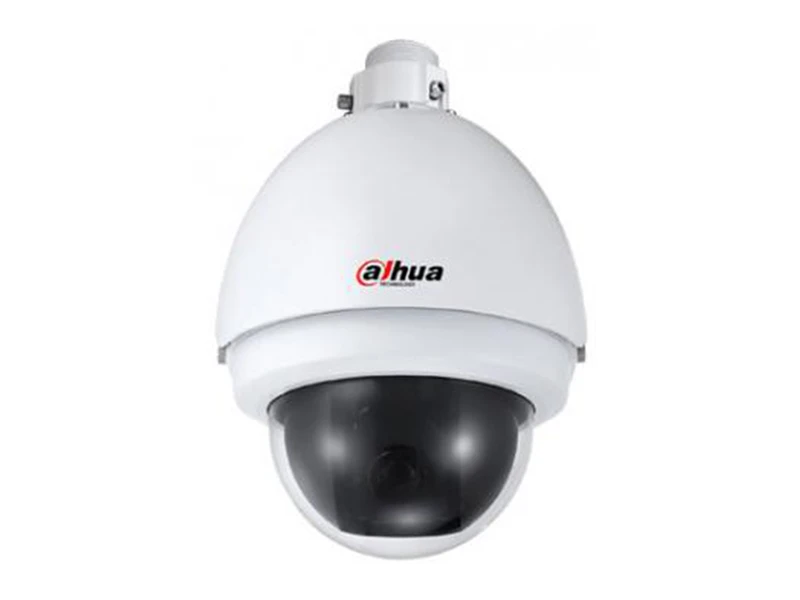

Dahua DH SD6582A HN IP HD Speed Dome Kamera

Özellikler

1/2.8” 2 Megapiksel progresif tarama Exmor CMOS
Güçlü 20x optik zoom ve 16x dijital zoom
H.264 & Çift akış video kodlama ve JPEG görüntü yakalama
Maksimum 25/30fps @ 1080P çözünürlüğü
Gündüz/Gece(ICR), Oto iris,
Otomatik odak, AWB, BLC 24 gizlilik maskeleme alanı
Internet Explorer web sunucusu,
NVR, CMS(PSS/DSS) & DMSS

Teknik Özellikler

Kamera
Görüntü Sensörü	1/3” Exmor CMOS
Effective Pixels	1944(H) x 1092(V), 2 Megapixels
Scanning System	Progressive
Electronic Shutter Hızı	1/1 ~ 1/30,000s
Min.Aydınlatma	Color: 0.05Lux @ F1.6, B/W: 0.005Lux @ F1.6
S/N Oranı	More than 50dB
Video Çıkış	BNC(1.0Vp-p/75Ω), PAL / NTSC
Kamera Özellikleri
Day/Night	Auto(ICR) / Color / B/W
Arka Işık Telafisi	BLC / HLC / DWDR (Digital WDR)
Beyaz Denge	Auto, ATW, Indoor, Outdoor, Manual
Kazanç Kontrolü	Auto / Manual
Gürültü Azaltma	2D / 3D
Gizlilik Maskesi	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	4.7mm ~ 94.0mm(20x Optical zoom)
Max Aperture	F1.6 ~ F3.5
Focus Control	Auto / Manual
Angle of View	H: 55.4°~ 2.9°
Close Focus Distance	10mm ~ 1000mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~250°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Preset	80(DH-SD), 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Sıkıştırma	H.264 / MJPEG
Çözünürlük	1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Hızı	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Hızı	H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Ses
Sıkıştırma	G.711a / G.711u (32kbps) / PCM (128kbps)
Arayüz	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Ver. 2.0 conformance
Max. User Access	20 users
Akıllı Telefon	iPhone, iPad, Android, Windows Phone
