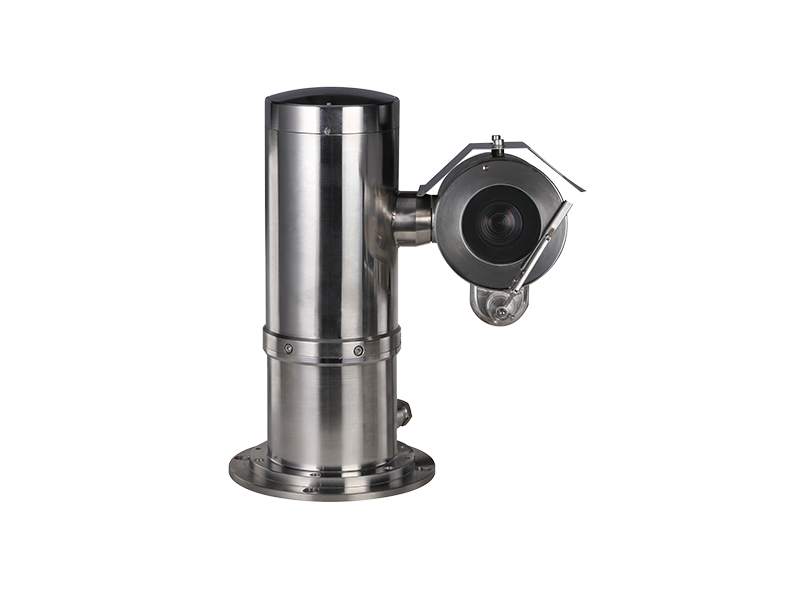

Dahua EPC230U PTZ IP PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/2.8” STARVIS™ CMOS | ||
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels | ||
| RAM/ROM | 512M/128M | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | 1/1s~1/30,000s | ||
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W:0.0005Lux@F1.6 | ||
| S/N Ratio | More than 55dB | ||
| IR Distance | N/A | ||
| IR On/Off Control | N/A | ||
| IR LEDs | N/A | ||
| Wiper | Support | ||
| Lens | |||
| Focal Length | 4.5mm~135mm | ||
| Max. Aperture | F1.6 ~ F4.4 | ||
| Angle of View | H: 67.8° ~ 2.4° | ||
| Optical Zoom | 30x | ||
| Focus Control | Auto/Manual | ||
| Close Focus Distance | 100mm~ 1000mm | ||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance whichmakes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
| Detect | Observe | Recognize | Identify |
| 1862m(6109ft) | 744m(2441ft) | 372m(1220ft) | 186m(610ft) |
| PTZ | |||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 90° | ||
| Manual Control Speed | Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s | ||
| Preset Speed | Pan: 40° /s; Tilt: 40° /s | ||
| Presets | 256 | ||
| PTZ Mode | 5 Scan, 8 Tour | ||
| Speed Setup | Human-oriented focal Length/speed adaptation | ||
| Power up Action | Auto restore to previous PTZ and lens status after power failure | ||
| Idle Motion | Activate Preset/Scan/Tour if there is no command in the specified period | ||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | ||
| Intelligence | |||
| Auto Tracking | N/A | ||
| IVS | Tripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map | ||
| Video | |||
| Compression | H.265+/H.265/H.264+/H.264 | ||
| Streaming Capability | 3 Streams | ||
| Resolution | 1080P(1920×1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | ||
| Frame Rate | Main stream: 1080P/1.3M/720P(1~50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps) | ||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Backlight Compensation | BLC / HLC / WDR (120dB) | ||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||
| Gain Control | Auto / Manual | ||
| Noise Reduction | Ultra DNR (2D/3D) | ||
| Motion Detection | Support | ||
| Region of Interest | Support | ||
| Electronic Image Stabilization (EIS) | Support | ||
| Defog | Support | ||
| Digital Zoom | 16x | ||
| Flip | 180° | ||
| Audio | |||
| Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 | ||
| Network | |||
| Ethernet | RJ-45 (10Base-T/100Base-TX) | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x | ||
| Interoperability | ONVIF Profile S&G, API | ||
| Streaming Method | Unicast / Multicast | ||
| Max. User Access | 20 users | ||
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB | ||
| Web Viewer | IE, Chrome, Firefox, Safari | ||
| Management Software | Smart PSS, DSS, DMSS | ||
| Smart Phone | IOS, Android | ||
| Interface | |||
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) | ||
| RS485 | 1 | ||
| Audio I/O | 1/1 | ||
| Alarm I/O | 2/1 | ||
| Electrical | |||
| Power Supply | AC220V(AC100V ~ 240V) | ||
| Power Consumption | 35W, 60W(Heater on) | ||
| Environmental | |||
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH | ||
| Ingress Protection | IP68 | ||
| Vandal Resistance | N/A | ||
| Construction | |||
| Casing | 316L Stainless Steel | ||
| Dimensions | Φ316mm×358mm×285mm | ||
| Net Weight | 23.3kg(51.37lb) | ||
| Gross Weight | 27.5kg(60.63lb) | ||
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
