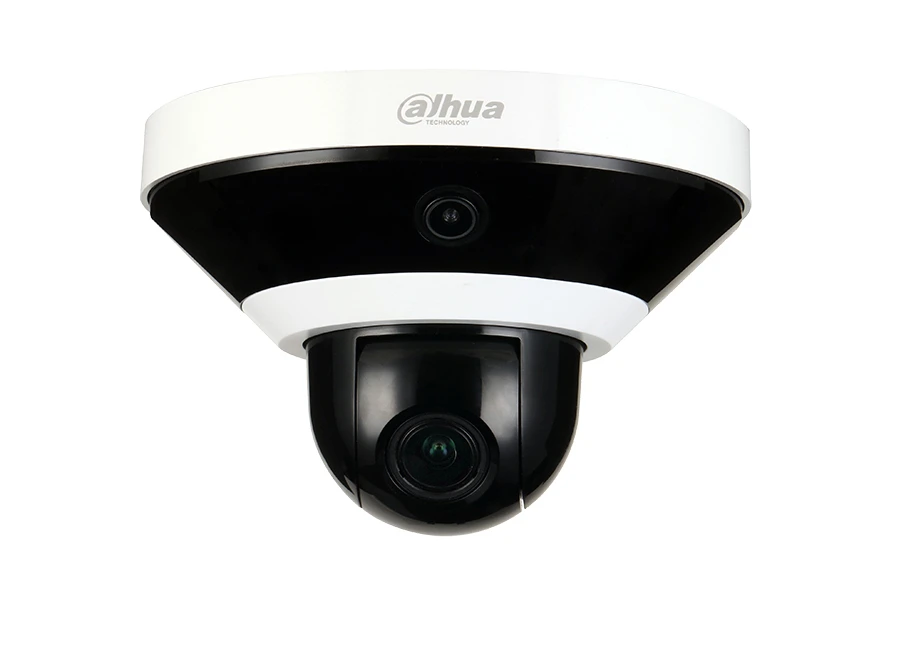

Dahua PSDW8842M A180 PTZ Panoramik IP Kamera

Özellikler

Panoramic: Four 1/1.8'' 2 Megapixel progressive scan CMOS
PTZ: One 1/1.8'' 4 Megapixel progressive scan CMOS
Support 180-degree panoramic view
Starlight technology
H.265/H.264 triple-stream encoding
Day/Night (ICR); 3D DNR; AWB; AGC; BLC
IR distance up to 400 m
Smart tracking
Tripwire
Intrusion
Crowd map

Teknik Özellikler

Camera
Image sensor	Panoramic network camera: 1/1.8”CMOS PTZ camera: 1/1.8”CMOS
Max. resolution	Panoramic network camera: 4096×1800
	PTZ camera: 2560 × 1440
Scan	Progressive
Electronic shutter	Panoramic network camera: 1/3 s-1/100000 s, manual or auto adjust
	PTZ Camera: 1/1 s-1/300000 s, manual or auto adjust
Minimum illumination	Panoramic network camera:
	0.01 Lux @ F2.0
	PTZ camera:
	0. 0008 Lux @ F1.3
Max fill light distance	Panoramic network camera: None PTZ camera: ≥ 400 m (1312 ft) (IR fill light)
Fill light control	Auto
Fill light quantity	Panoramic network camera：None PTZ camera: 7 (IR LEDs)
Lens angle range	N/A
Lens
Lens type	Panoramic network camera:
	Fix focal PTZ camera: Electric zoom
Lens connector	Panoramic network camera ：M12 PTZ camera: Core interface
Focal length	Panoramic network camera 5 mm PTZ camera: 5.6mm–223mm, optical zoom (40 times)
Aperture	Panoramic network camera: F2.0 PTZ camera: F1.3
Angle of view	Panoramic network camera:Horizontal: 180° Vertical: 84° PTZ camera:Horizontal: 2°–61°
	vertical: 1°-36°
	Diagonal: 3°–68°
Optical zoom	Panoramic network camera: None PTZ camera: 40 times
Aperture type	Panoramic network camera: Fixed aperture PTZ camera: Auto aperture
Min photographic distance	Panoramic network camera :1.2 m (3.94 ft)
	PTZ camera: 0.5 m (1.64 ft)
DORI distance		Detect	Observe	Reconize	Identify
	Panoramic network camera	53.3m	21.3m	10.7m	5.3m
		( 174.9ft )	( 69.9ft )	( 35.1ft )	( 17.4ft )
	PTZ camera	2873.1m	1149.2m	574.6m	287.3m
		( 9426.2ft )	( 3770.3ft )	(1885.2ft)	( 942.6ft )
Smart event
IVS analyze	Intrusion, tripwire
Professional, Intelligent
Crowd map	Crowed map, Global setup and No. in area
Video
Video encoding	H.265; H.264; H.264H; H.264B; MJPEG
Intelligent code	H.264
	H.265
Video frame rate	Main stream: 4096 × 1800 (1–25 fps/30 fps)
	Sub Stream: 1920 × 832 (1–25 fps/30 fps)
	Third Stream: 4800 × 1920 (1–2 5fps/30 fps)
Decoding	3 Streams
Resolution	Panoramic network camera:
	4096 × 1800; 4800 × 1920; 3840 × 1680; 3200 × 1280; 2880 × 1264; 2048 × 900; 1920 × 832; 1600 × 640; 1280 × 560; 1024 × 452
	PTZ camera:
	2560 × 1440; 2048 × 1536; 1920 × 1080; 1280 × 960; 1280 × 720; 704 × 576; 704 × 480; 352 × 288; 352 × 240
Bit rate control	Panoramic network camera: CBR/VBR
	PTZ camera:CBR/VBR
Video bit rate	Panoramic network camera:
	H.264: 256 Kbps-25599 Kbps
	H.265: 196 Kbps-15494 Kbps PTZ camera:
	H.264: 184 Kbps-15104 Kbps
	H.265: 110 Kbps-9216 Kbps
Day/Night	ICR
BLC	Yes
Wide dynamic range	120 dB
White balance	Panoramic network camera:Auto/Natural/street lamp/outdoor/manual/regional Custom
	PTZ camera: Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street lamp
Gain control	Auto/Manual
Noise reduction	3D DNR
Motion Detection	Disable/Enable
Region of interest	Panoramic network camera: Yes (4 areas) PTZ camera:Yes (4 areas)
Electronic image stabilization(EIS)	Panoramic network camera: — PZT camera: Yes
Smart IR	Panoramic network camera: — PTZ camera: Yes (Adjusted by user.)
Defog	Panoramic network camera: — PTZ camera: Yes
Digital zoom	Panoramic network camera: N/A PTZ camera: 16 times
Privacy masking	Panoramic network camera (Privacy masking): 4 areas PTZ camera (Privacy masking): 8 areas
Audio
Audio encoding	G.711Mu/G.711A/ G.726/ AAC/
Network
Ethernet	One 10/100/1000Mbps Ethernet port
	One 1000M fiber port(optional)
Network protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/IPv6; SNMP; QoS; UPnP; NTP
Third party access	ONVIF (Profile G); CGI
Scene self-adaptation	Yes
Max user	20 (Total bandwidth: 80 M)
Storage	SD card, FTP (SFTP), NAS (NFS/SMB)
Browser	IE, Chrome, Firefox, Safari
Platform	EVS, NVR, M70, DSS
Certification
Certification	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485 port	One (Bit rate: 1200 bps-115200 bps)
Audio input	2 channels (connecting terminal)
Audio output	2 channels (connecting terminal)
Alarm input	7 channels (Wet contact, and it supports potential 3V–5V and max current 0.5A.)
Alarm output	3 channels (Wet contact, and it supports max potential 30V DC, 1 A/max potential 50V AC, current 0.5 A.)
Analog output	1 channel CVBS BNC port
Power
Power supply	DC36V
Power consumption	< 77.7W
Environment
Operating temperature	-40°C to +70°C (-40°F to +158°F)
Operating humidity	≤95%
Storage temperature	-40°C to +70°C (-40°F to +158°F)/Less than 95% RH
Protection grade	IP66
Structure
Enclosure	Metal + Plastic
Dimensions	Φ383 mm × 389.8 mm (Φ1256.56 ft × 1279.8 ft)
Net weight	14.3 kg (31.53 lb)
Gross weight	19.5 kg (42.99 lb)
