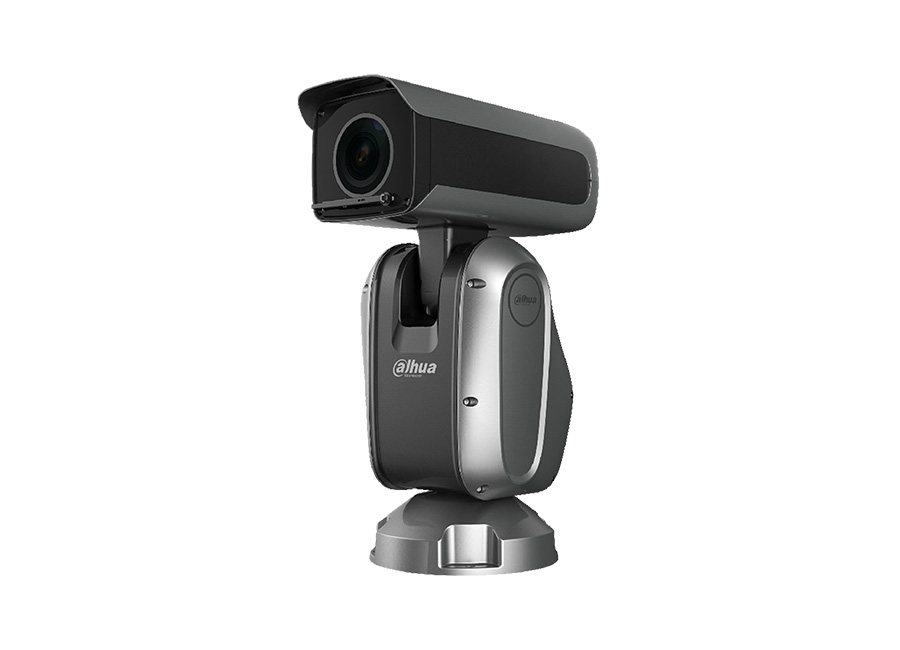

Dahua PTZ83240 HNF WA IR IP PTZ Kamera
Özellikler
Teknik Özellikler
Camera | ||||
Image Sensor | 1/1.8" CMOS | |||
Max. Resolution | 2MP | |||
Effective Pixels | 1920(H)×1080 (V) | |||
ROM | 32GB | |||
RAM | 4GB | |||
Electronic Shutter Speed | 1/1–1/30000s | |||
Scanning Mode | Progressive Scanning | |||
Minimum Illumination | Color: 0.001Lux@F1.4 | |||
B/W: 0.0001Lux@F1.4 | ||||
0Lux (IR light on) | ||||
IR Distance | 400m( 1312.34ft ) | |||
IR On/Off Control | Zoom Prio/Manual/SmartIR | |||
IR LED Number | 10 | |||
Wiper | Support | |||
Lens | ||||
Focal Length | 5.6 mm–223 mm | |||
Aperture | F1.4–F4.5 | |||
Field of View | H: 1.8°~70.3°; V: 1.2°–35°; D: 2.4°–66.9° | |||
Optical Zoom | 40x | |||
Focus Control | Auto/Semi-Auto/Manual | |||
Close Focus Distance | 0.5 m–2 m | |||
Iris Control | Auto | |||
DORI Distance | Detect | Observe | Recognize | Identify |
2346.7 m | 938.7 m (3.78.9ft) | 469.3 m (1539.4 ft) | 234.7m (769.7 ft) | |
(7697.18 ft) | ||||
PTZ | ||||
Pan/Tilt Range | Pan: 0°–360°; Tilt: -90°~45° | |||
Manual Control Speed | Pan: 0.1°–160°/s; Tilt: 0.1°–60°/s | |||
Preset Speed | Pan: 160°/s; Tilt: 60°/s | |||
Presets | 300 | |||
Tour | 8(up to 32 preset per tour) | |||
Pattern Number | 5 | |||
Scanning Number | 5 | |||
Speed Adjustment | Support | |||
Power-off Memory | Support | |||
Idle Motion | Preset/Tour/Pattern/Scanning | |||
Protocol | DH-SD | |||
Pelco-P/D(Auto recognition) | ||||
Artificial Intelligence | ||||
Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and atributes extracton. | |||
Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | |||
Auto Tracking | Support | |||
Face Recognition | Support | |||
General Intelligence | ||||
Event Trigger | Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. | |||
General IVS | Object Abandoned/Missing | |||
Video | ||||
Compression | H.265, H.264Main/High/Baseline Profile, MJPEG(Sub Stream) | |||
Streaming Capability | 3 Streams | |||
Resolution | 1080P (1920×1080); 1.3M(1280×960); 720P (1280×720); D1 (704× 576); CIF (352×288) | |||
Frame Rate | Main stream:1080P/1.3M/720P(1–25/30fps) | |||
Sub stream 1: D1/CIF(1–25/30fps) | ||||
Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/CIF(1–25/30fps) | ||||
Bit Rate Control | Variable Bit Rate/Constant Bit Rate | |||
Bit Rate | H.264: 1792 Kbps–9216 Kbps | |||
H.265: 512 Kbps–5632 Kbps | ||||
Day/Night | Support | |||
BLC | Support | |||
WDR | 120dB | |||
HLC | Support | |||
White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp | |||
Gain Control | Auto/Manual | |||
Noise Reduction | 2D/3D | |||
Motion Detection | Support | |||
Region of Interest (RoI) | Support | |||
Electronic Image Stabilization (EIS) | Support | |||
Defog | support | |||
Digital Zoom | 16x | |||
Flip | 180° | |||
Privacy Masking | Up to 24 areas | |||
Function | ||||
CVI Mode | CVBS | |||
Audio | ||||
Audio Compression | G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 | |||
Port | ||||
Ethernet | 1 RJ-45 Port 10/100Base-T | |||
Audio In | 1 | |||
Audio Out | 1 | |||
Alarm | 7 in and 2 out | |||
Analog Output | 1 BNC | |||
RS-485 | 1 | |||
Network | ||||
Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE | |||
Interoperability | ONVIF Profile S&G; CGI | |||
Streaming Method | Unicast/Multicast | |||
Max. User Access | 20 (Total bandwidth 64M) | |||
Edge Storage | FTP; Micro SD card (256G) | |||
Browser | IE7 and newer versions | |||
Chrome 42 and older versions | ||||
Firefox 52 and older versions | ||||
Safari | ||||
Management Software | Smart Player | |||
Smart PSS | ||||
DSS | ||||
Easy4ip | ||||
Smart Phone | IOS/Android/Windows Phone | |||
Electrical | ||||
Power Supply | AC24V/8.35A±25% | |||
Power Consumption | 39W | |||
70W (IR light on, PTZ, wiper, heater) | ||||
Environment | ||||
Operating Conditions | -40°C ~ 70°C (–40°F to +158°F) | |||
Operating Humidity | ≤95%RH | |||
Ingress Protection | IP67; TVS 6000V lightning protection; surge protection | |||
Construction | ||||
Dimensions | 210.7mm×366.5mm×498.7mm (8.30"×14.43"×19.63") | |||
Weight | Net Weight: 14 kg (30.86 lb); Gross Weight: 19.77 kg (43.59 lb) |
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
